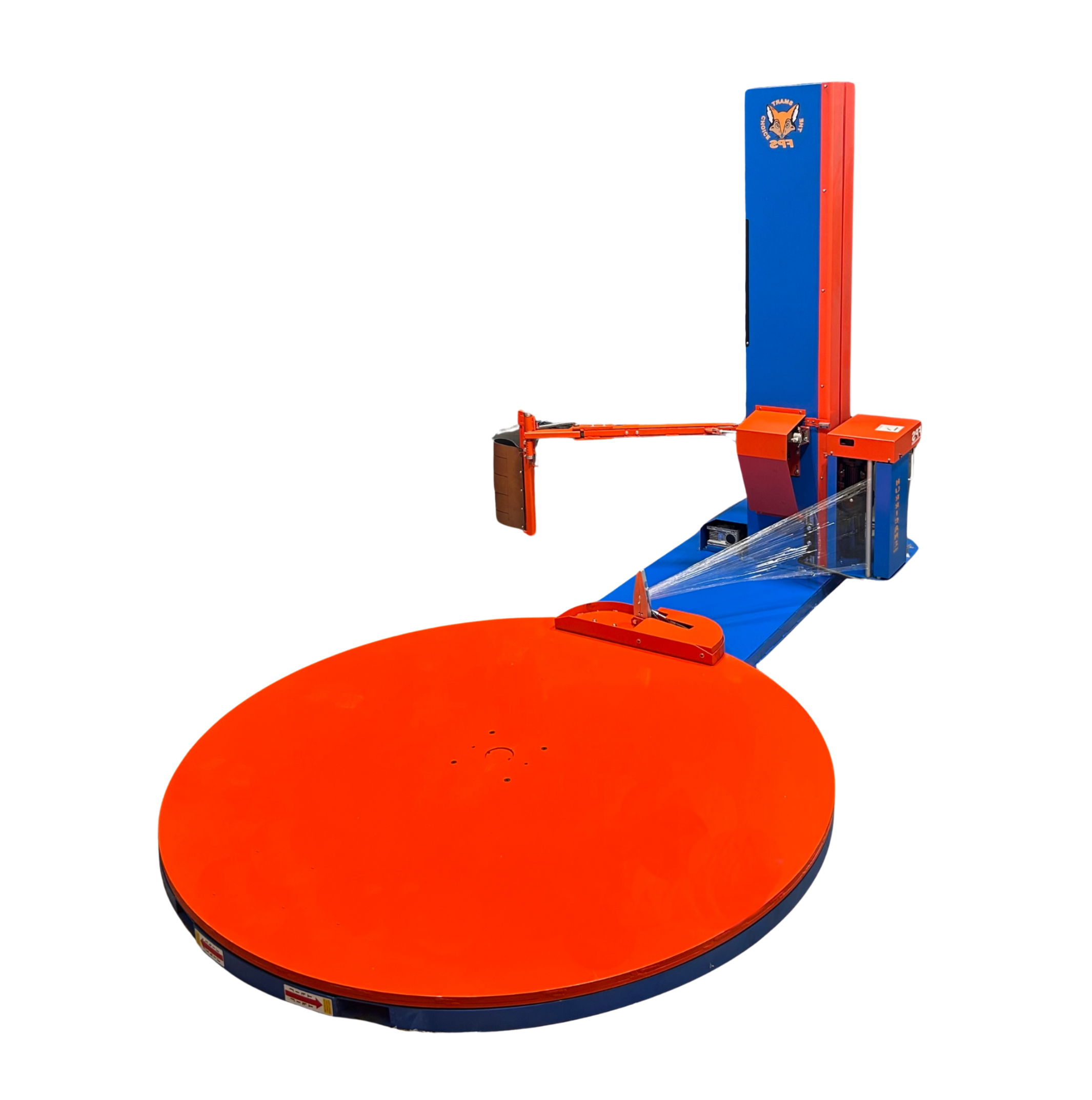

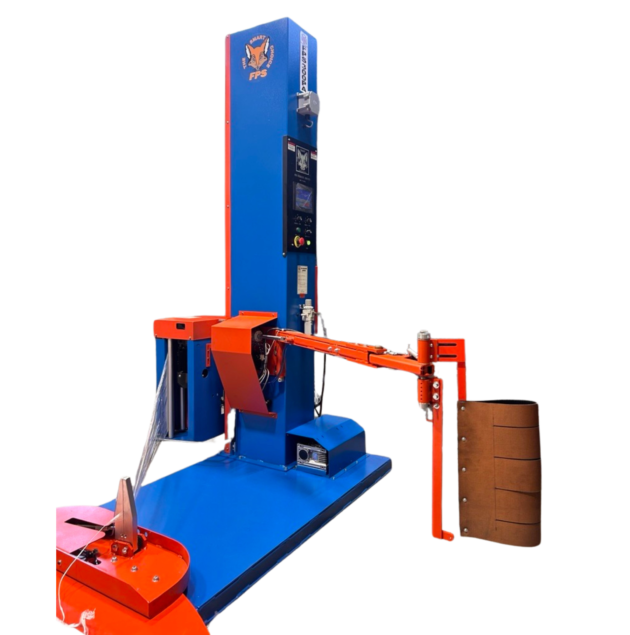

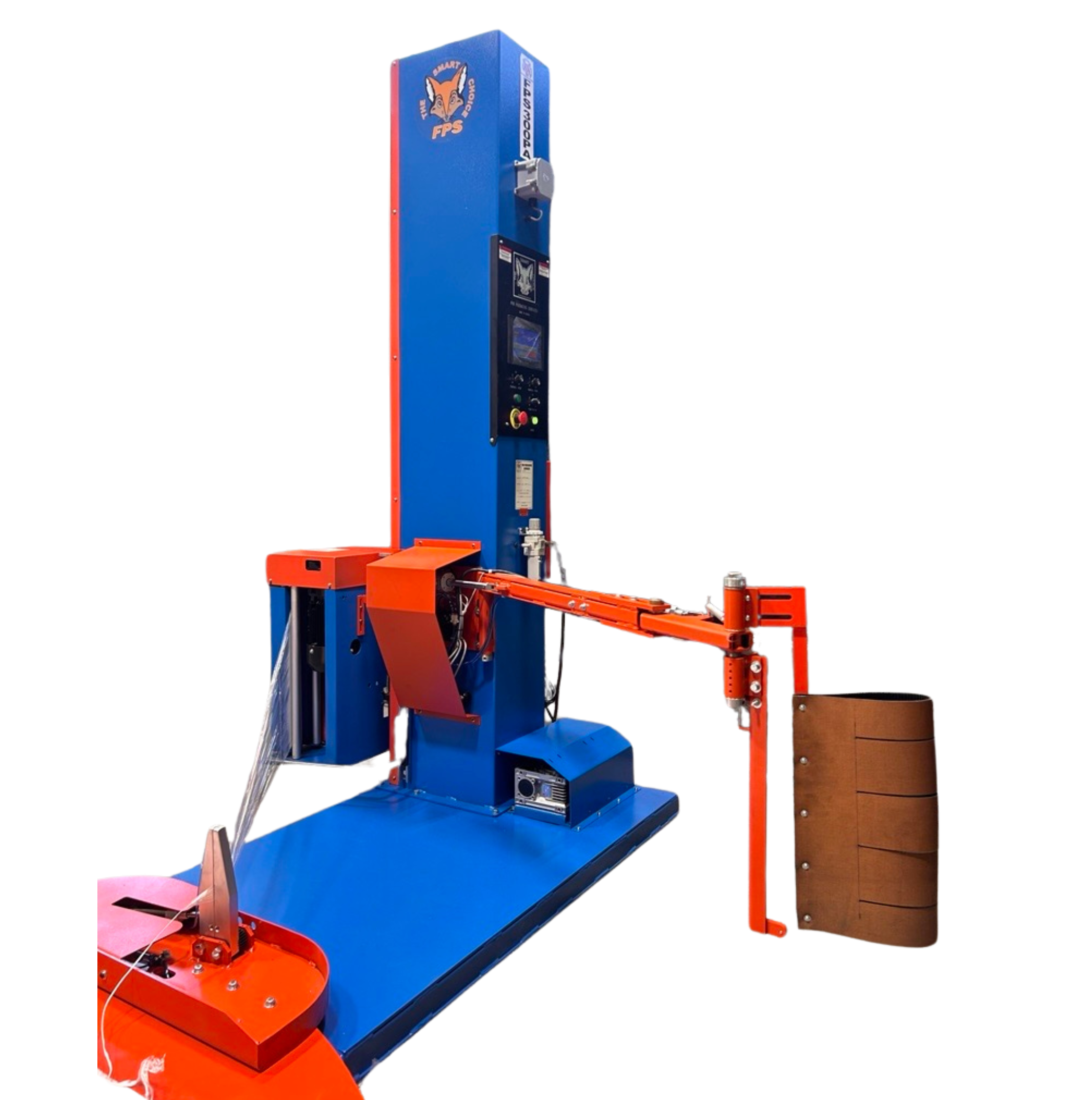

The FPS 300PA represents a portable automatic low-profile pallet wrapper, meticulously crafted to deliver efficient and dependable pallet wrapping
Specifications:
| Production Speed | 1-40 LPH |
|---|---|
| Load Size | 50″L x 50″W x 90″H (70″ Diagonal) |
| Weight Capacity | 5000LBS |
| Table Support | 36 TABLE SUPPORT WHEELS |
| Turntable Speed | 0-15RPM |
| Power Requirements | 115VAC, 15A, 60Hz- PLUG AND PLAY |
Film Deliver System:
- HURRICANE THREAD 20” prestretch film delivery system
- 200% factory set stretch (50-250% available upon request)
- Easy thread film carriage
- Electronic film force control on panel
- Adjustable mechanical force to load
- Linear analog proximity sensor film feed speed control
- 3/4HP AC MOTOR & DELTA 1 HP VFD
- Triple beam auto height eye capable of recognizing all colors including black
Control Features:

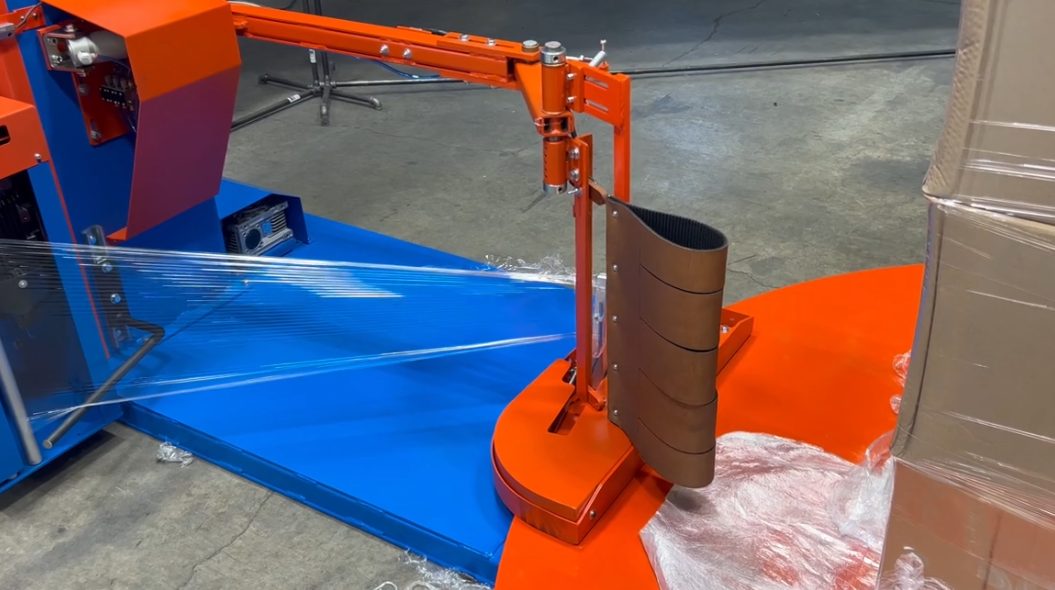

- Automatic film clamp, cut and wipe- Patent
- Pending Hotwire cutter system
- PLC (Programmable Logic Control)

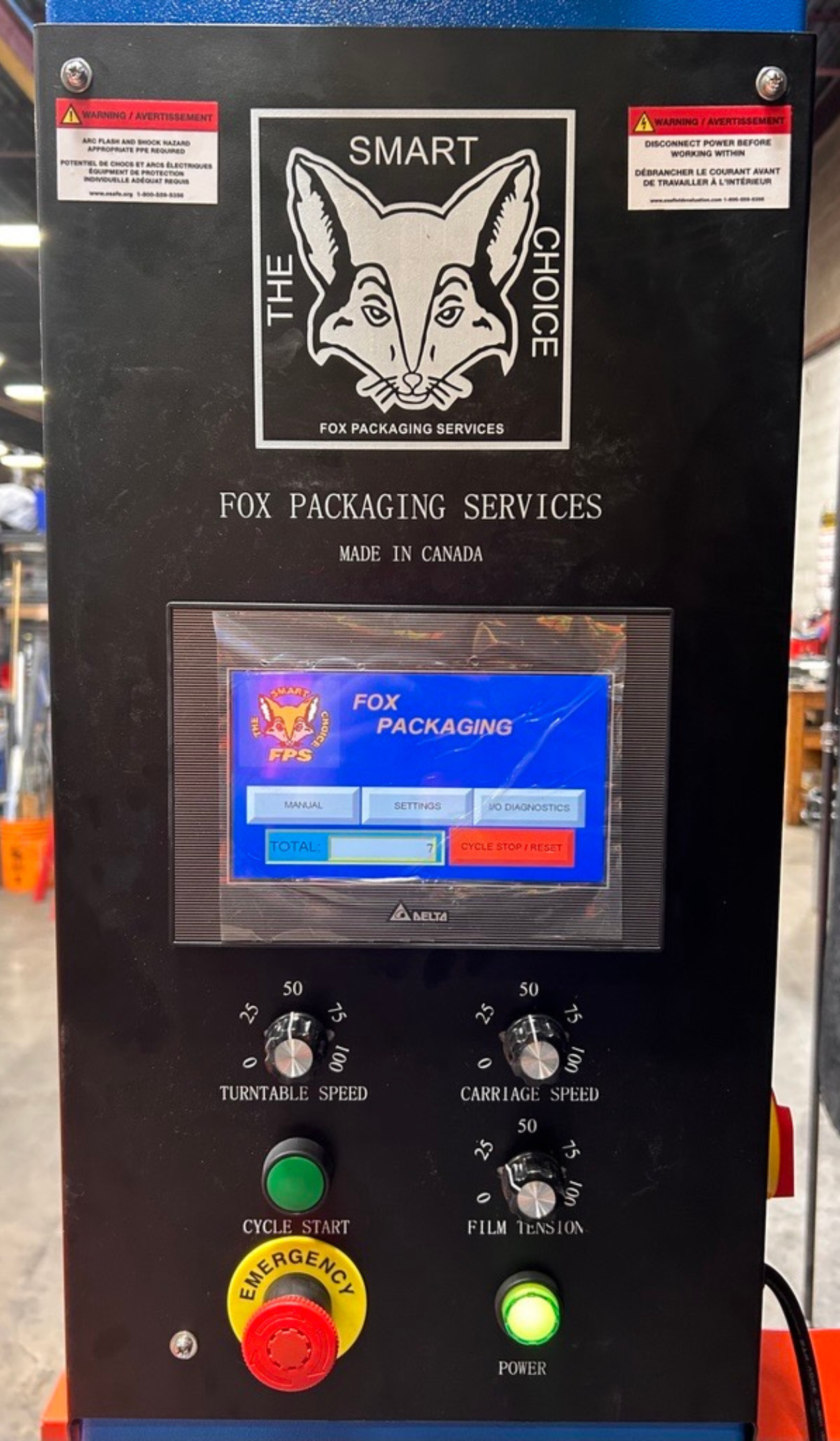

- Full color 7” touch screen display by DELTA (providing function control viewing)
- DELTA 1 HP AC VFD’s
- Variable Turntable Speed 0-15 RPM
- Variable Film Carriage Speed Up/Down Control
- Separate Top/Bottom Wrap Selectors 1-9
- Separate Film Height Selector 1-9″
- Flush Mounted Control Panel (built into tower)
- Cycle Counter
- Remote controlled start / stop cycle key fob or Landline
- Manual Carriage Raise/Lower Control
- Turntable Jog with Auto Home Alignment
- Large Emergency push button power On / Off
- Switch with indicator light
- Start Cycle Push Button
- Standard Wrap Up/Down Program
- All circuits protected by fuses (easy access)
For more information about the machine and other shrink packaging options please Contact Us at (416) 299-0960 and one of our customer service representatives would be happy to help you with whatever you need.
