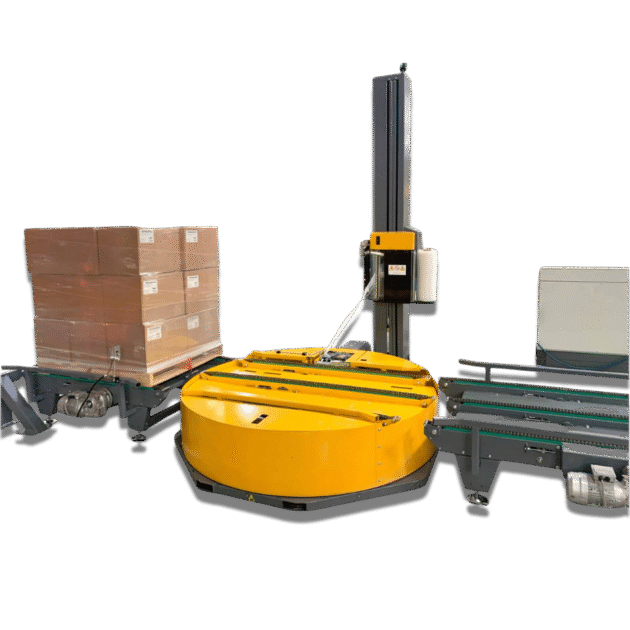

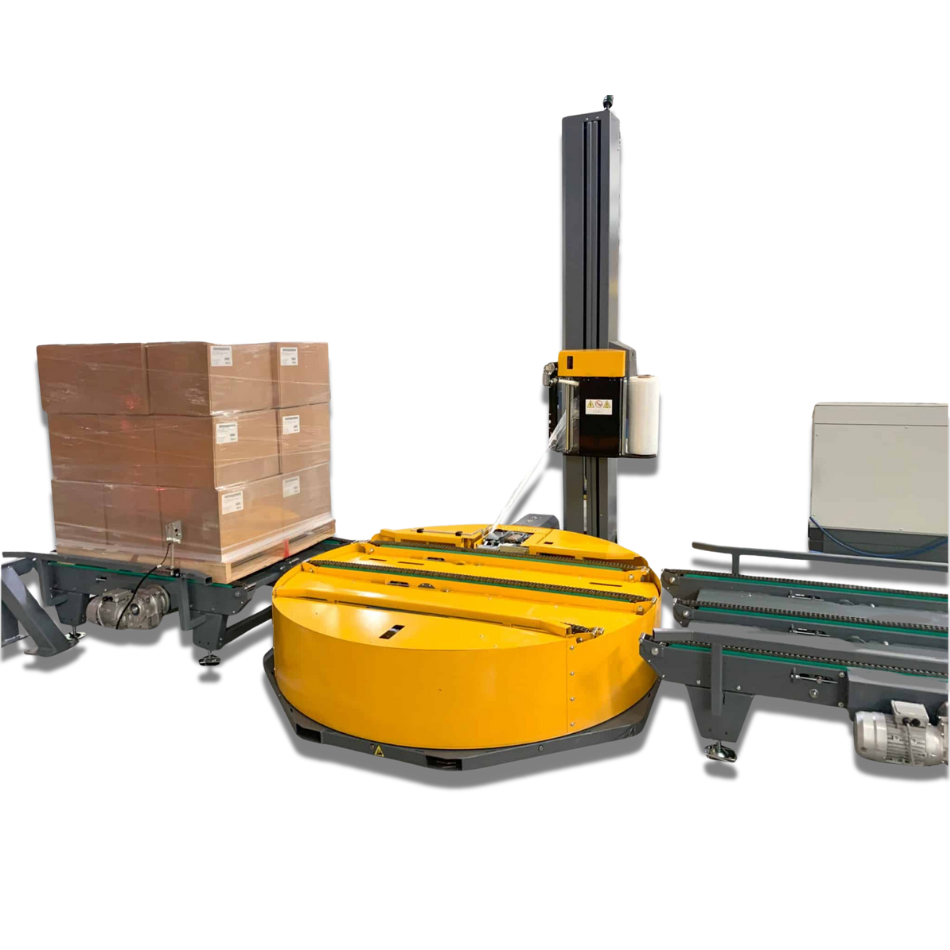

STREAMLINE YOUR PACKAGING PROCESS WITH THIS AUTOMATIC CONVEYOR PALLET WRAPPER
Overview:
- 30 pallets per hour production.
- 86″ maximum load wrap height -118″ extended height available.
- 3800lb maximum load weight capacity.
- 250% power pre-stretch film carriage for improved efficiency.
- Auto film attach, hot weld seal, and film auto cut.
Features:
- Frequency controller for rotation speed adjustment
- Frequency controller for carriage speed adjustment
- Photocell for pallet height detection
- Safety stop at the base of the carriage
- Stop at 0 position
- Power board IP54
- Password lock mode
- Adjustable parameters by the control panel: cycle selection, bottom wrap counts, top wrap counts, rotation speed, carriage speed going up, carriage speed going down, film tension
- 10 wrap programs can be saved by the customer
- 4 cycle types: automatic, semimanual, semiautomatic, and fixed height
- Acoustic warning at the cycle beginning and stop
- Wrapped pallet counter
- Autodiagnostic
- Powder coating
- Soft start and stop
Accessories:
- Dark load photoeye
- Top press
- Adjustable power pre-stretch
- Integrated scale
- In feed and out feed conveyor
- Safety fencing
- Light curtains
- Film slitting device for ventilated loads
For more information about the machine and other pallet wrapping options please Contact Us at (416) 299-0960 and one of our customer service representatives would be happy to help you with whatever you need.
