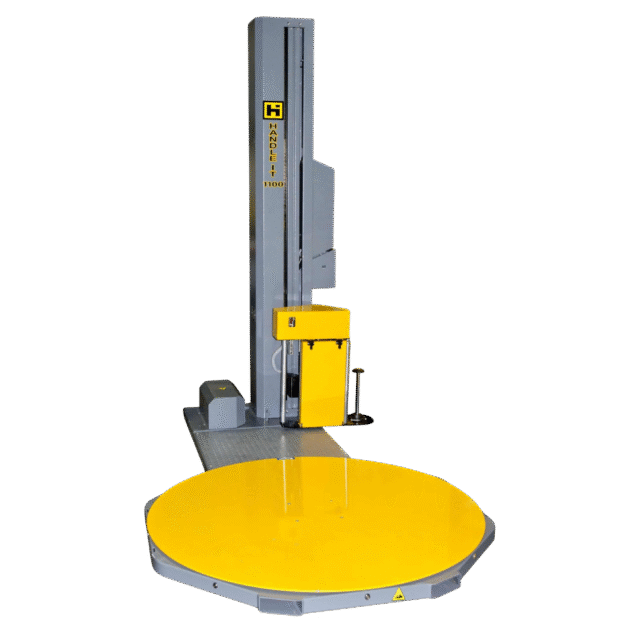

A RELIABLE AND USER-FRIENDLY SOLUTION FOR SEMI-AUTOMATIC PALLET WRAPPING
Overview:
- 300 maximum average loads per day
- Total max wrap height of 94″ optional -118″ extended height available
- 4400lb maximum load weight capacity
- 250% power pre-stretch film carriage for improved efficiency
- Turntable speed 3-12 RPM
- 59″ Turntable size
- 110v standard plug
- Machine size 104″L x 59″ W x 97″ H
Features:
- User-friendly integrated PLC control board
- Frequency controller for carriage and/or turntable speed adjustment
- Photocell for pallet height detection
- Electronically controlled power pre-stretch carriage- load sensor dynamically controls the application of film for consistent film stretch.
- Stop at home position
- Easily adjustable parameters such as bottom wraps, top wraps, carriage ascent & descent speed, film tension, & starting wrap height
- Quick selection of 6 main parameters or saved programs
- USB port to upload software and download settings, reports, and statistics
- 6 working cycles: ascent/descent, topsheet, only ascent, only descent, layers, and stack
- Storage of 32 end user programs
- On-board diagnostics
- 3 year warranty
Benefits:
- Rack and pinion carriage drive system increases reliability and decreases down time
- Heavy duty frame construction for the most demanding jobs
- Integrated PLC controls with onboard diagnostics make repairs easier to identify and reduces downtime
- Belt driven power pre-stretch carriage for added reliability
- Heavy Duty carriage rollers and self lubricating turntable bearings
- Password protection and one of the widest array of wrap cycle parameters available
Accessories:
- Integrated Scale
- Automatic film cutter
- Label Printer for weight tickets
- Frame extension for long pallet loads
- Loading Ramp
- Roping System
- 118” Max Wrap Height
- Top Press
- Photocell for Dark Loads
- Cold Environment Kit
For more information about the machine and other pallet wrapping options please Contact Us at (416) 299-0960 and one of our customer service representatives would be happy to help you with whatever you need.
