Application:

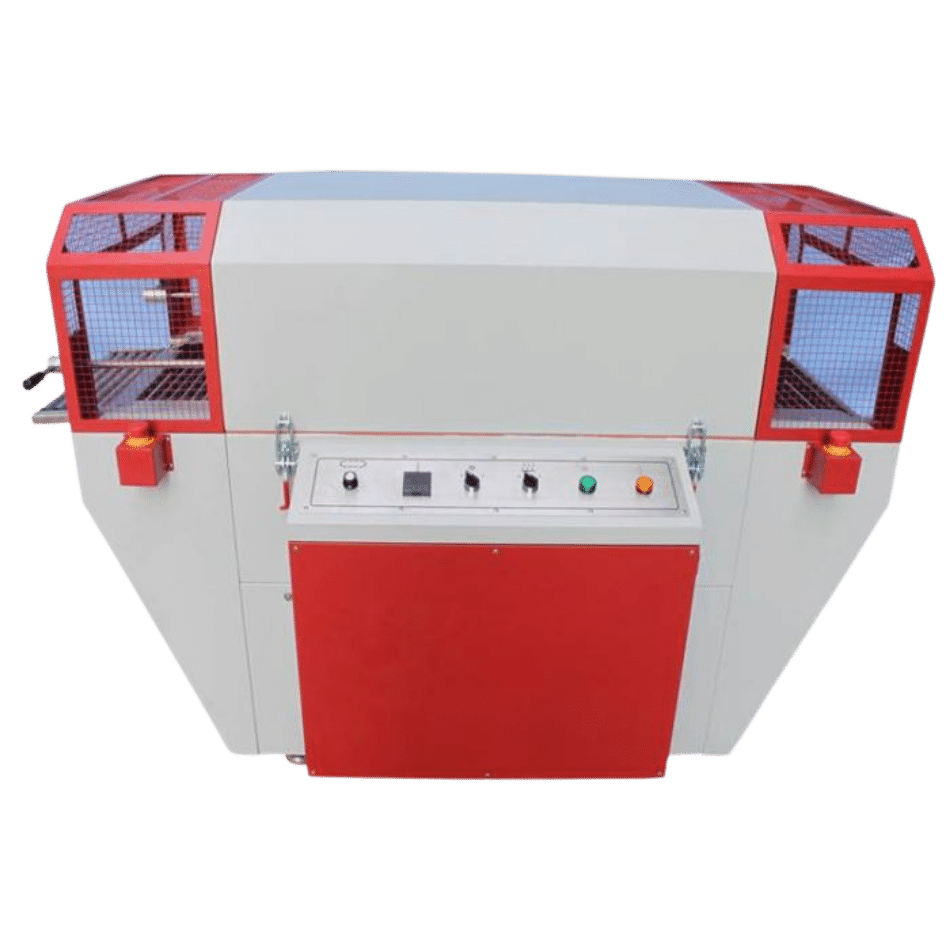

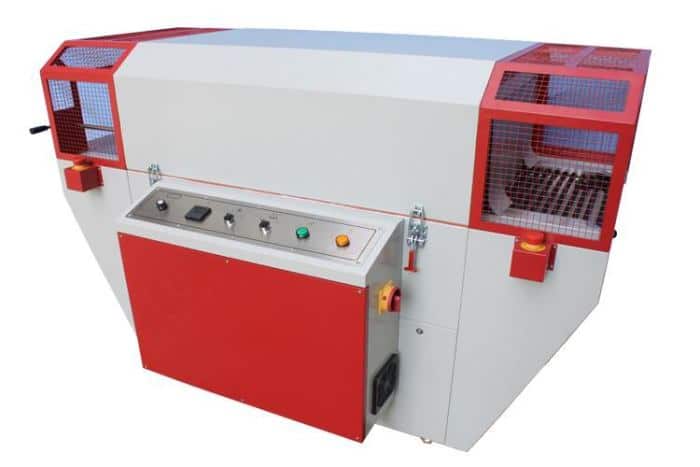

An industrial heat shrink tunnel use heat to shrink film around packages. TLA-1040 is designed to work with L bar sealer or sleeve wrapper bundler, but also stand alone for shrink banding applications, is compatible with a wide range of standard product sizes and offer optimum shrink performance while using minimum space.
Features:
- Thermal circulation system using high integrated design, rapid temperature raise up
- SSR and PID temperature control, temperature tolerance down to +/- 1oC
- Auto shut down function when temperature drops to 70oC, saves time and energy
- Has long life metal heater, durable and stable
- Heater drawer design, for easy inspection and heater connecting and replacement.
- Conveyor speed 1-18M/Min adjustable by VTV speed controller and AC motor
- Standard live roller design
- Air flow from bottom to ensure perfect shrink result
- Insulating layer between the heating zone and outer wall about 100mm to minimize heat lost.
- Tunnel exit with short transfer free roller with angle adjustable.
- Both side lateral air flow direction adjustable.
- With casters
Options:
- Stainless steel machine construction
- Operable tunnel cover
- Different tunnel opening heights available
