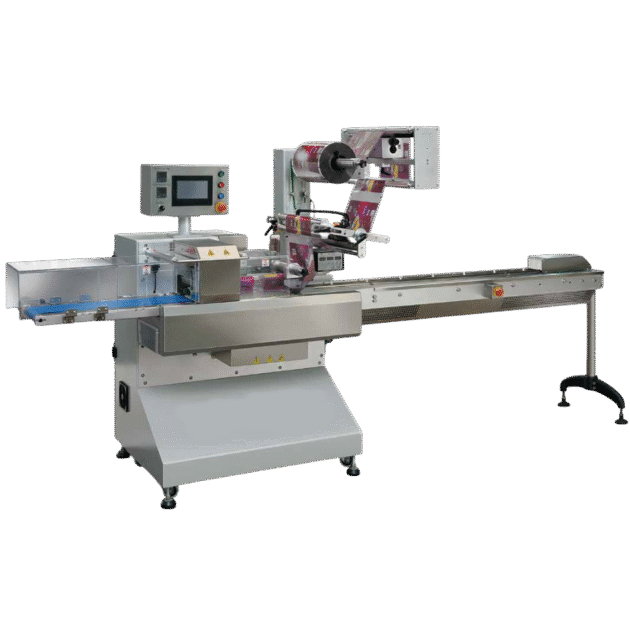

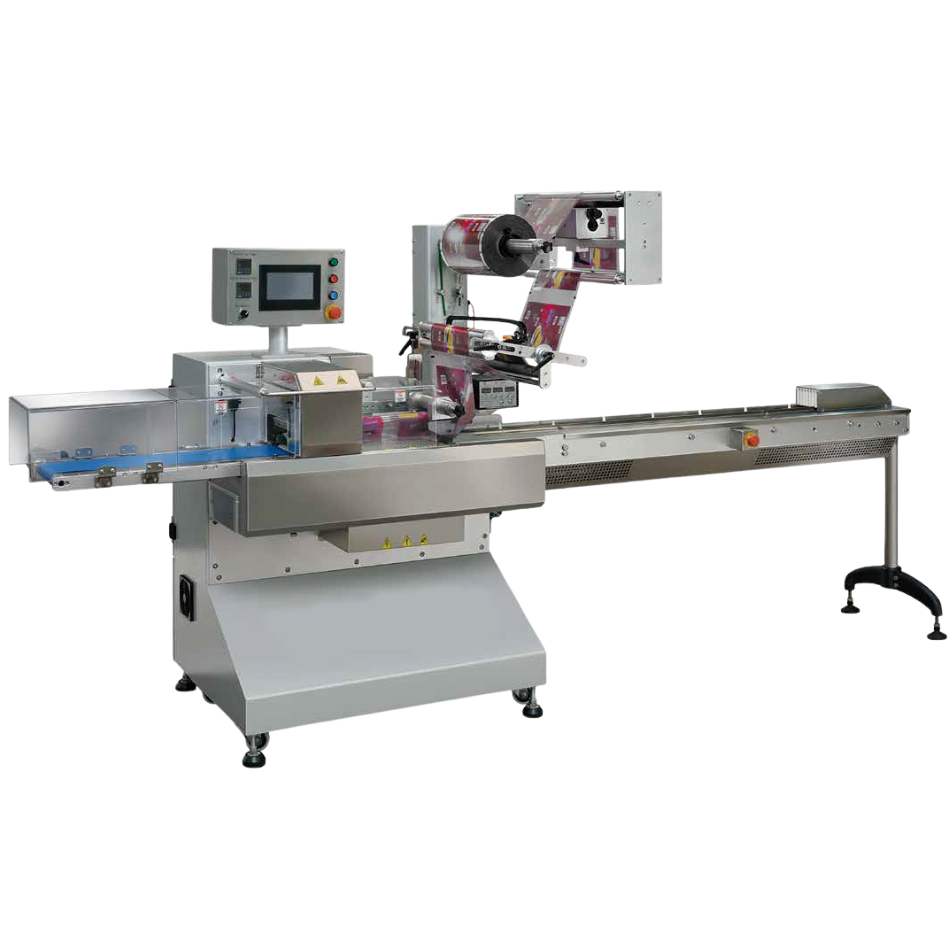

IMPAK AHP-450 Horizontal Flow Wrapper

In Stock

Category:

$15,999.00

PROVIDES A HIGHSPEED AND EXTREMELY RELIABLE FLOW WRAPPING SOLUTION

The IMPAK AHP-450 SERVO Series is a Horizontal Flow Wrapper with medium-high performance level. It suits a wide range of production applications, where fast and easy to operate and size change operations are required. The AHP-450 SERVO Series flow wrappers can be tailored to match each customer’s specific needs, and deliver maximum production flexibility and efficiency at each performance level.

  •  Fully Adjustable Film Former.
  •  Bag Length, Speed of packaging, Axis Homing, Film Advance, Print Registration settings, Product Memory (20 recipes).
  •  Machine powered by 3 brushless servo motors Direct Gear Driven Assembly
  •  Interlocked safety switches on all doors and guards that can be opened without tools
  •  All parts in contact with the product are either 304 stainless steel.

Brochure Button

Features:

  • Fully Adjustable Film Former.
  • PLC controller with HMI Full Color Touch Screen to control the main machine functions such as: Bag Length, Speed of packaging, Axis Homing, Film Advance, Print Registration settings, Product Memory (20 recipes).
  • Machine powered by 3 brushless servo motors Direct Gear Driven Assembly.
  • No product, No Bag Function.
  • Dual OMRON temperature PID control and Solid State Relay.
  • Two pair of sealing disc for fin seal with automatic pneumatic opening.
  • SICK Sensor Printing film eye mark tracing system.
  • Interlocked safety switches on all doors and guards that can be opened without tools
  • All parts in contact with the product are either 304 stainless steel.



Advantages:

  • Durability
  • Versatility
  • Reliability
  • Low Maintenance
  • Easy to Use



For more information about the machine and other shrink packaging options please Contact Us at (416) 299-0960 and one of our customer service representatives would be happy to help you with whatever you need.

Specs

Length

200-600mm

Width

50-180mm

Height

5-75mm

Capacity(bags/min)

20-90

Machine Weight

650kg

Power

3 KW
