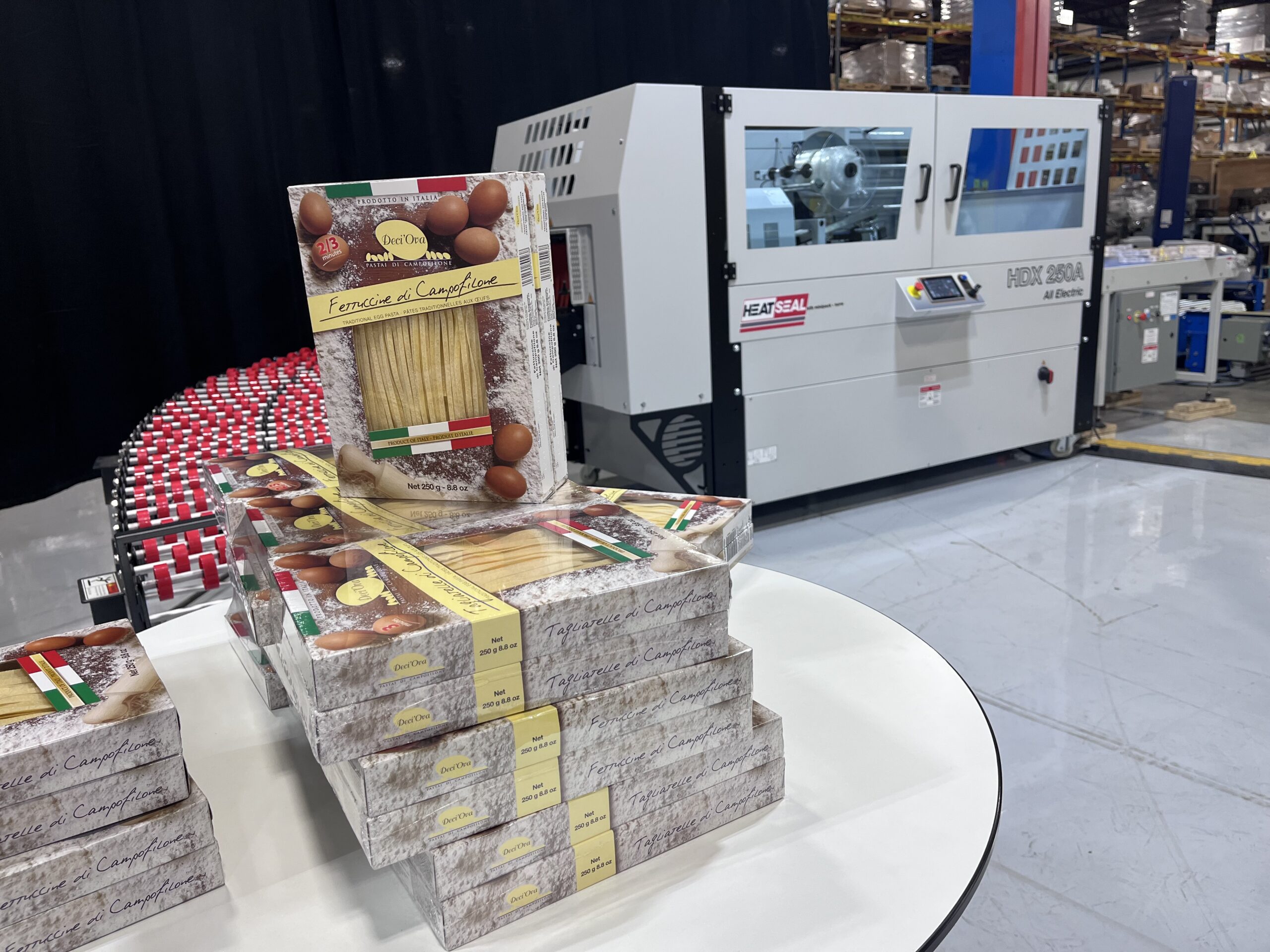

Automatic Combo Shrink System HDX-250A

Heat-Seal HDX-250A Shrink Wrapper: Streamlines Packaging with Automatic Shrink Wrapping and Sealing in One Compact System

The Heat-Seal HDX-250A Combination Shrink Wrapper is a high-speed, space-saving packaging solution that combines an automatic L-Bar Sealer with a built-in shrink tunnelโ€”an industry first. Its intuitive touchscreen control panel offers programmable settings to ensure consistent, high-quality results. Designed for efficiency, this compact combo unit reduces both floor space requirements and equipment costs, coming in at up to 40% less than purchasing a comparable automatic L-sealer and shrink tunnel separately.



Brochure Button
Manual Button
Production Rate

0-35 PPM

Machine Dimensions

L 111โ€, W 54โ€, H 64โ€

Seal Area

W 20" x L 20"

Film Capacity

W 23.5โ€ณ, 11.75โ€ OD

Maximum Product Dimensions

W 15.5โ€, L 16.5โ€, H 4.5โ€ณ

Machine Weight

1840 Lbs

Heat-Seal HDX-250A Automatic Combo Shrink Wrapper


Features:

โ€ข Compact Design
โ€ข Multiple Alarms for Machine Monitoring
โ€ข Powder Coated Steel Construction
โ€ข Locking Casters
โ€ข Two Year Limited Warranty

Controls:

โ€ข All Electric, No Air Required
โ€ข 7โ€ Color Touchscreen
โ€ข Store Up to 128 Recipes
โ€ข Multi-level Password Protection
โ€ข Multiple Language
โ€ข Two Emergency Stop Buttons
โ€ข USB & SD Interface
โ€ข Variable Speed Conveyors

For more information about the machine and other shrink wrapping options please Contact Usย atย (416) 299-0960ย andย one of our customer service representatives would be happy to help you with whatever you need.

Production Rate

0-35 PPM

Machine Dimensions

L 111โ€, W 54โ€, H 64โ€

Seal Area

W 20" x L 20"

Film Capacity

W 23.5โ€ณ, 11.75โ€ OD

Maximum Product Dimensions

W 15.5โ€, L 16.5โ€, H 4.5โ€ณ

Machine Weight

1840 Lbs

Specs

Production Rate 0-35 PPM
Machine Dimensions L 111โ€, W 54โ€, H 64โ€
Seal Area W 20″ x L 20″
Tunnel Chamber Dimensions W 17.75โ€, H 10.5โ€, L 37โ€
Film Capacity W 23.5โ€ณ, 11.75″ OD
Maximum Product Dimensions W 15.5โ€, L 16.5โ€, H 4.5โ€ณ
Power 208-240VAC, THREE PHASE, 22A
Conveyor Height 34.25โ€
Machine Weight 1840 Lbs
Spec Sheet: Download
