Fox FPS 400HPA Pallet Wrapper – Heavy-Load Wrapping Power with Zero Manual Touch
Control Features:

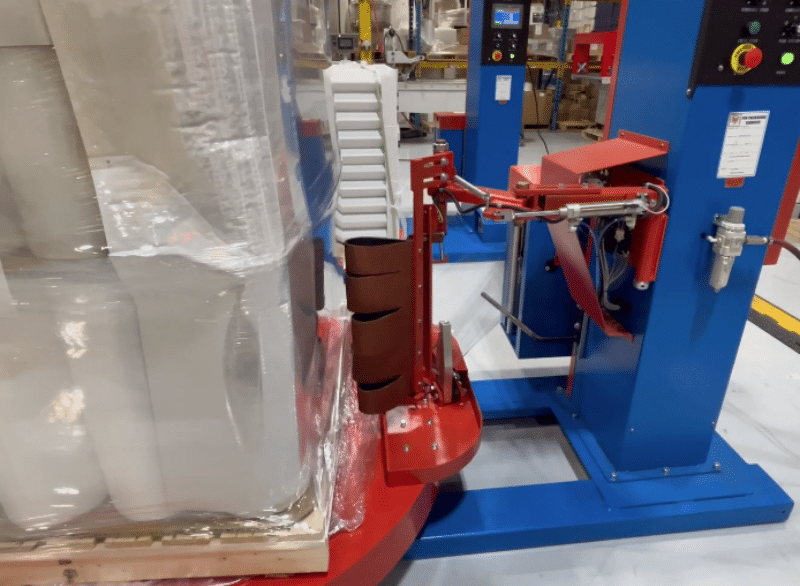

- Automatic film clamp, cut and wipe hotwire cutter system
- 32 I/O PLC (Programmable Logic Control) by Delta
- Full color 7” touch screen display by DELTA (providing function control viewing)
- Remote control start / emergency stop Key- Fob Or landline (*subject to local safety regulations)
- Variable Turntable Speed 0-15 RPM
- Variable Film Carriage Speed Up/Down Control
- Separate Top/Bottom Wrap Selectors 1-9
- Separate Film Height Selector 1-9″
- Flush Mounted Control Panel (built into tower)
- Cycle Counter
- Manual Carriage Raise/Lower Control
- Turntable Jog with Auto Home Alignment
- 3 different on board wrap programs
- Large Emergency push button power On / Off Switch with indicator light
- Start Cycle Push Button
- Standard Wrap Up/Down Program

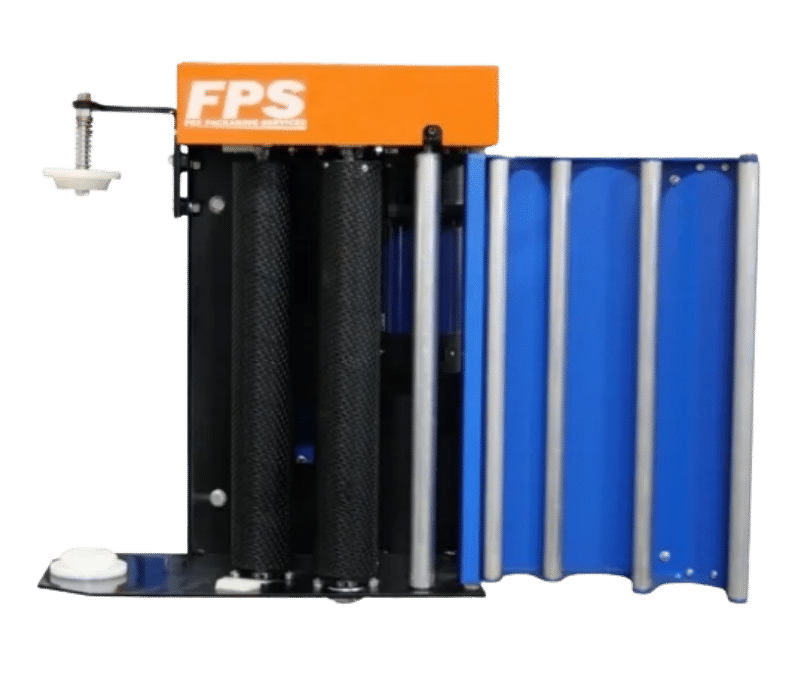

Film Delivery System:
- HURRICANE THREAD 20” prestretch film delivery system
- 200% factory set stretch (50-300% available upon request)
- Easy thread film carriage
- Electronic film force control on panel
- Adjustable mechanical force to load
- Linear analog proximity sensor film feed speed control
- 3/4HP AC MOTOR & DELTA 1 HP VFD
- Triple beam auto height eye capable of recognizing all colors including black
Turntable Add-on Options:
- Height/Base Extension
- Integrated Scale Package
For more information about the machine and other pallet wrapping options please Contact Us at (416) 299-0960 and one of our customer service representatives would be happy to help you with whatever you need.
