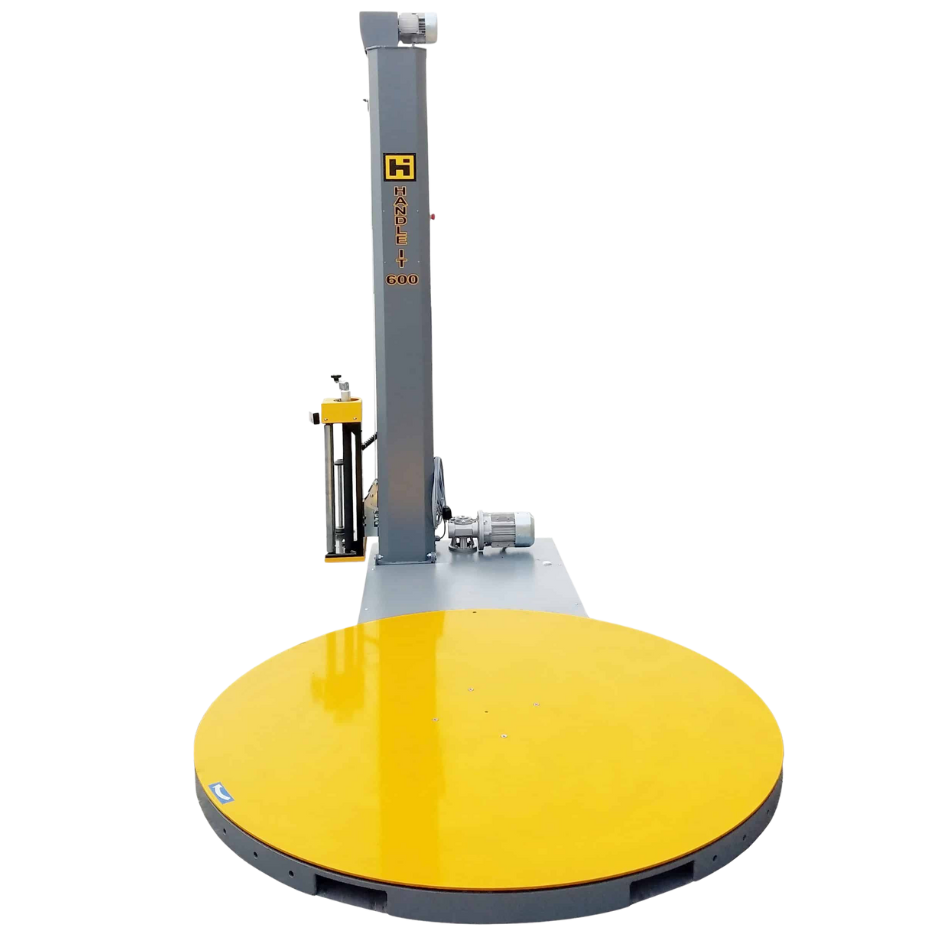

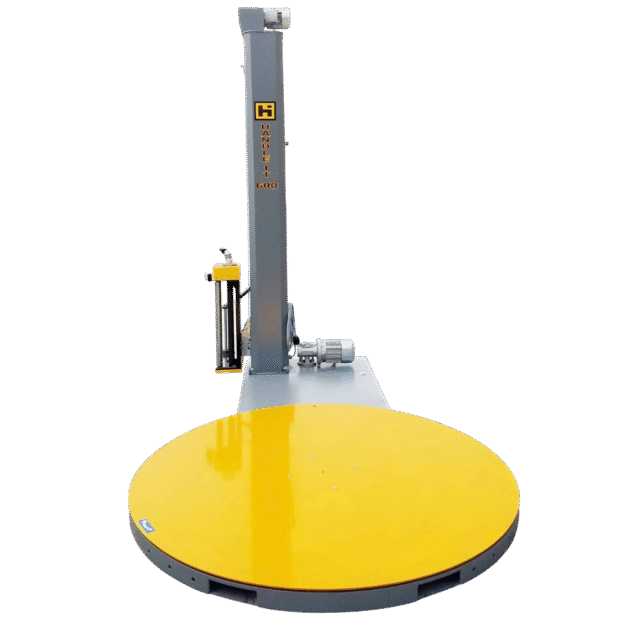

EFFICIENTLY WRAPS UP TO 20 PALLETS PER DAY!
Overview:
- 20 maximum average loads per day
- 93โณ maximum load size diagonal
- 86โณ maximum load height
- 2600lb load weight capacity
Features:
- Electronic printed circuit board for the control of the cycle;
- ย Frequency controller for turntable speed adjustment (from 3 to 12 RpM)
- ย Frequency controller for carriage speed adjustment (speed going up and speed going down can be set differently)
- ย Adjustable Mechanical brake for film stretching and tension control
- ย Photocell for pallet height detection
- ย Safety stop at the base of the carriage
- ย Stop at home position
- ย Power board IP54
- ย 2 access keys (including lock mode)
- ย Adjustable parameters by the control panel: cycle selection; bottom turns; top turns; rotation speed; carriage speed going up; carriage speed going down; photocell delay
- ย Reinforcing operation
- ย 2 working cycles: up and down; only up
- ย 3 programs can be saved by the customer
- ย Acoustic warning at the cycle beginning and stop;
- ย Powder coating
- ย Soft start and stop turntable rotation
- ย 3-year warranty
Benefits:
- Photo-eye automatically senses the height of the pallet.
- Integrated control board makes repair and diagnosis easier and reduces machine downtime
- Photo Cell Delay for film overwrap for better load containment
- Heavy Duty Carriage Rollers & Self Lubricating turntable bearings
- Multiple saved cycles and parameters
- Easily moved with forklifts and plugs into standard 110v wall outlets.
Available Options:
-
- Integrated Scale to weigh pallet loads (SWS-0850-ASM)
- Loading Ramp forย hand pallet jacks (SWM-SA-STDRMP) **add the deck extension if using electric walk behinds (SWM-EXD)
For more information about the machine and other Stretchย wrapping options please Contact Usย atย (416) 299-0960ย andย one of our customer service representatives would be happy to help you with whatever you need.
