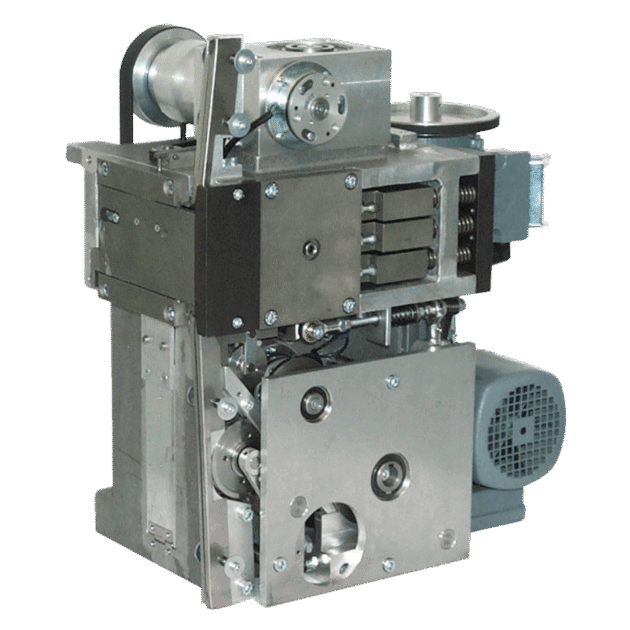

WULFTEC GT41 N – Strapping Head

In Stock

Category:

Wulftec GT41-N: Durable and Reliable Strapping Head for Securing Heavy Loads with Precision

Guarantees a solid vibration seal joint without any emissions of vapors
All Wulftec® strapping machines are equipped with the renowned GT41 N strapping head. Strap seal through vibration welding providing high quality and consistent strap joints. Complete head is mounted on hinge for easy access, cleaning and troubleshooting.



Automatic strapping machinery backed by the Wulftec knowledge, engineering and unbeatable service.
Wulftec manufactures technology advanced strapping systems; becoming the choice of the most demanding customers.



Brochure Button
Dimensions

21.5 " L x 11 " W x 19 " H

Electrical Requirements

460 V / 3 ph / 60 Hz

Strap Thickness

0.02'' up to 0.04''

Type of Strap

Polyester (PET)

Welding Time

Approx. 0.5 to 1.8 sec

GT41 N – STRAPPING HEAD STRAPPING SYSTEM



Features:



  • Wulftec was the first in North America to put AC variable frequency drives as standard equipment on all machines. Why? Lower maintenance and better reliability—Wulftec stretch wrappers will save time and money
  • Superior Electrical/Electronic Design including Allen Bradley Micro800 Series and AC drives
  • All motors, proximity sensors, photoeyes and other sensors have quick disconnect cables that simplify installation and maintenance
  • By changing the optional entry and exit guide, the head has the ability to strap with polyester from 3⁄8″ to 5⁄8″ wide and .015″ to .040″ thick strapping
  • Consistently reproducible strap tensioning
  • Consistently high seal efficiency
  • Environmentally favorable sealing by vibration welding
  • Separate drive section for high speed strap feeding and take up and to achieve maximum tension levels
  • Electronic strap circulation control
  • PowerFlex 70 and torque motor control
  • GT41 HT (high tension) available to pull 1,125 lbs tensioning
  • The best warranties in the industry
    • 1-year unlimited cycle warranty



For more information about the machine and other strapping options please Contact Us at (416) 299-0960 and one of our customer service representatives would be happy to help you with whatever you need.

Dimensions

21.5 " L x 11 " W x 19 " H

Electrical Requirements

460 V / 3 ph / 60 Hz

Strap Thickness

0.02'' up to 0.04''

Type of Strap

Polyester (PET)

Welding Time

Approx. 0.5 to 1.8 sec

Specs

Dimensions 21.5 ” L x 11 ” W x 19 ” H
Shipping Weight 156 lbs
Power Input 1.0 KW
Electrical Requirements 460 V / 3 ph / 60 Hz
Strap Thickness 0.02” up to 0.04”
Type of Strap Polyester (PET)
Welding Time Approx. 0.5 to 1.8 sec
