ST Series Shrink Tunnels

In Stock

Category:

SHRINK TUNNELS FOR CONSISTENT, ATTRACTIVE PACKAGING – COMPATABILE WITH DAMARK SHRINK-WRAPPING SYSTEMS

The Damark ST Series is the perfect solution for items that need to be enclosed in film. These tunnels are highly efficient and have a small footprint, allowing you to maximize floor space. The Damark ST Series has a standard width of 16 inches with tunnels that are 9 or 12 inches tall to accommodate products of varying heights.



Brochure Button
Tunnel Chamber Dimensions

20" L x 16" W x 9-12" H

Power

220 V 6A 1Phase

Speed

Up to 10 packages per minute

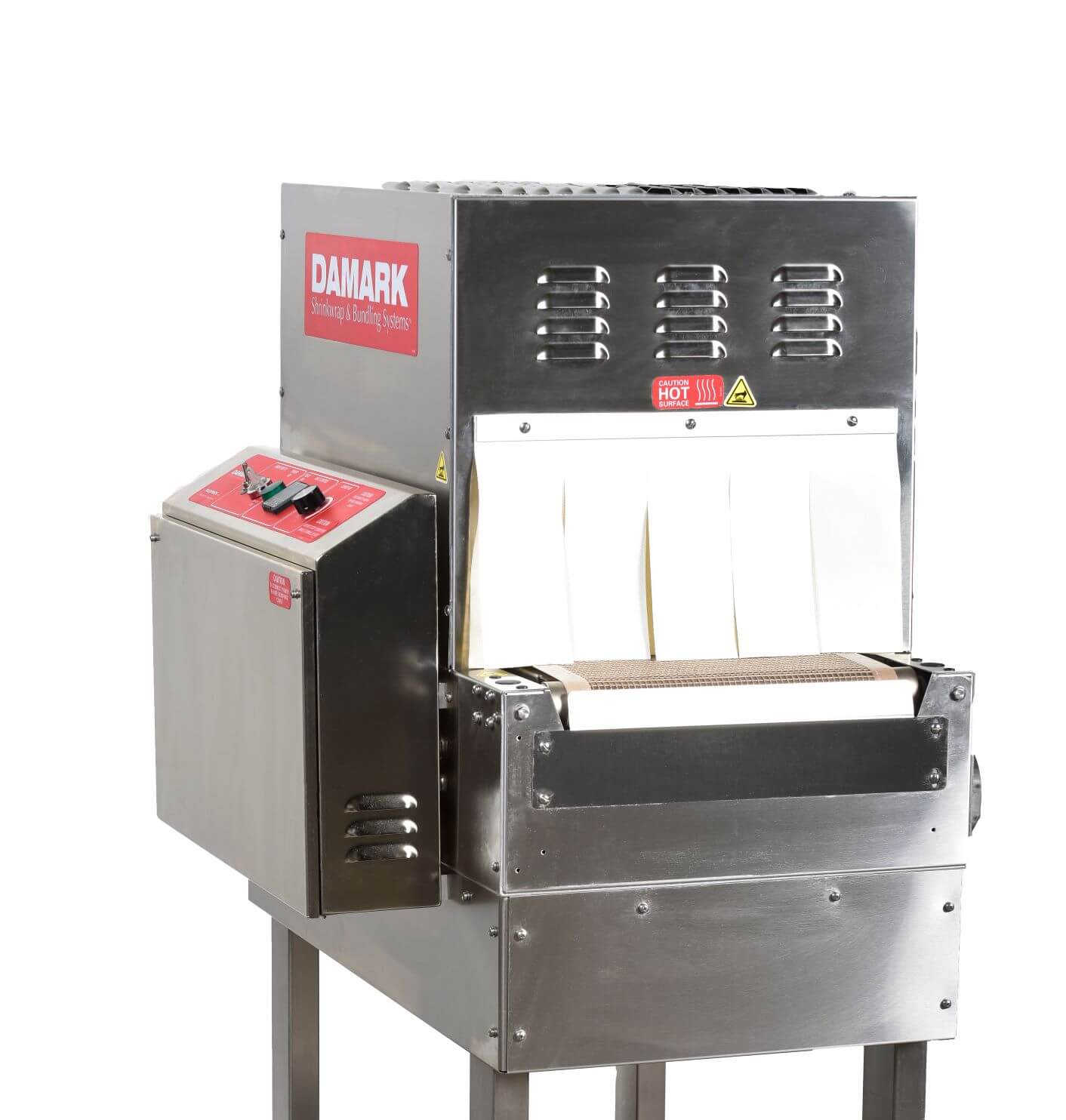

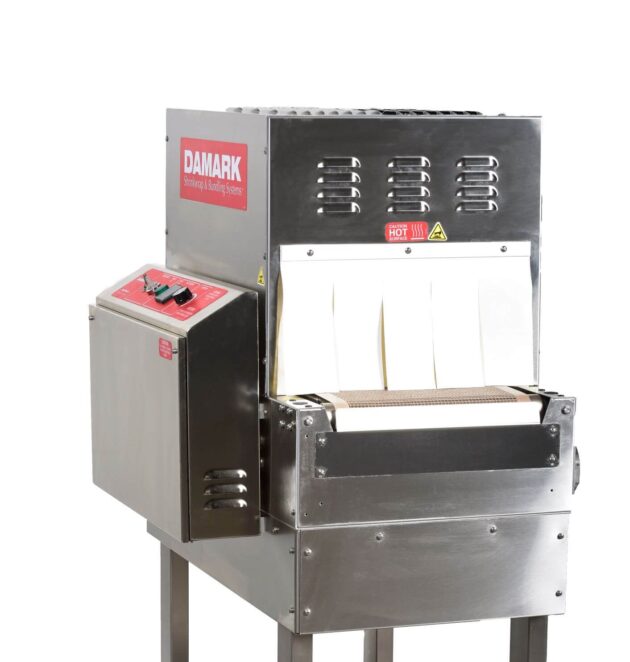

Damark ST Series Shrink Tunnels For Consistent, Attractive Packaging

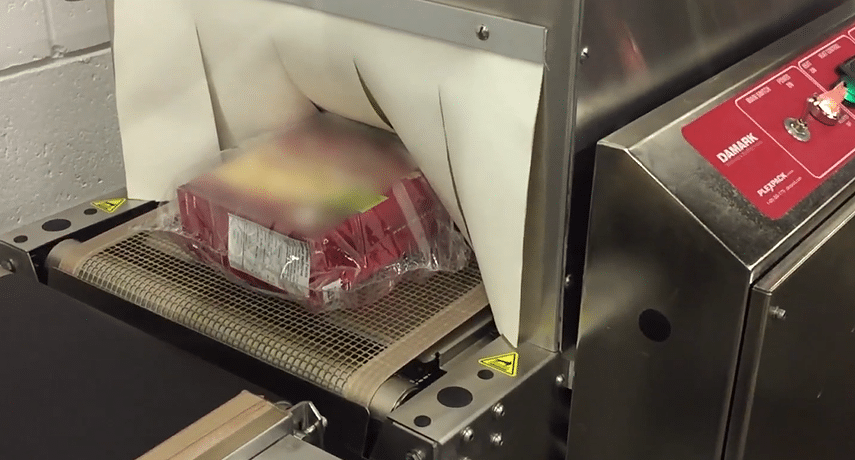

A Damark shrink-wrap tunnel consists of a conveyor belt that carries a product as it travels through the heated area. Heavy-duty, variable-speed turbo fans and heating elements heat the shrink film to create consistent, tight packaging around a product. Regardless of the width, length or overall size of your products, a shrink tunnel packaging machineย provides streamlined and efficient shrink wrapping.

Our shrink tunnels can be used in conjunction with Damark shrink-wrapping systems for uniform packaging.



The standard features of our Damark ST Series include:

  • Heavy gauge steel body, welded tubular steel frame and base
  • PID electronic temperature controller to ensure a constant tunnel temperature
  • Variable speed conveyor system
  • Automatic shutdown cycle
  • A bottom shrink section that ensures perfect all-around shrink



Industries:

Shrink tunnels play a significant role in the shrink-wrap packaging process. These machines help create secure, even packaging, enhancing the overall product presentation. Since the process is quick and effective, many industries use heat shrink tunnels to package products of nearly any size. Some of those industries include:

  • Food and beverage
  • Construction Materials
  • Industrial products
  • Household care



For more information about the machine and other shrink tunnel options please Contact Usย atย (416) 299-0960ย andย one of our customer service representatives would be happy to help you with whatever you need.

Tunnel Chamber Dimensions

Power

Speed

Specs

Tunnel Chamber Dimensions 20″ L x 16″ W x 9-12″ H
ย Max Temperature 180 C
Belting Teflon
Conveyor Variable Speed, Quick Change, Live/ Dead Rollers, 34โ€ H
Zone Single
Oven Type Convection
Convection Type Underflow
Power 220 V 6A 1Phase
Speed Up to 10 packages per minute

Request a Quote
