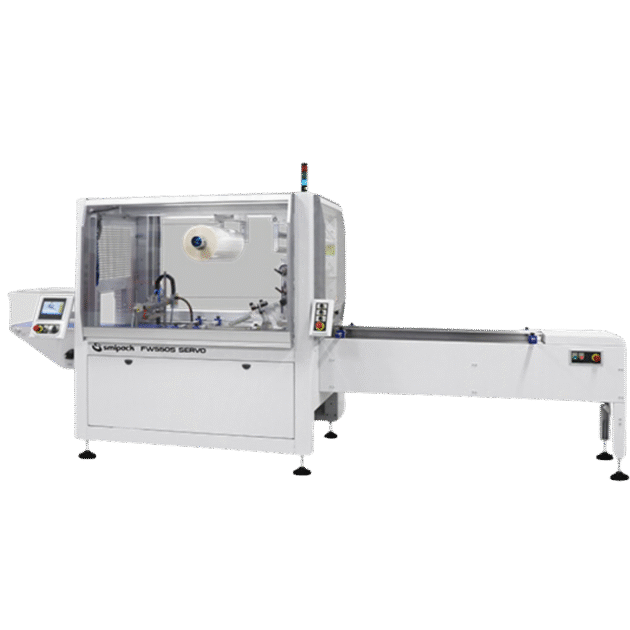

SMIPACK FW550 SERVO AUTOMATIC FLOW WRAPPER WITH BOX MOTION SEALING AND UPPER FILM REEL
Features:
- High reel flow pack machine
- Continuous working cycle (box motion) by cam electronics self-configuring
- Sliding surfaces of the products in AISI304
- 1500 mm – 59.06″ infeed conveyor with adjustable guides
- Easily removable interlocking vanes
- Longitudinal sealing consisting of 3 pairs of drive wheels, the first pair pulls the film, the second does the sealing and the third folds the film
- Pneumatic opening of the longitudinal sealing wheels
- Motorized high reel holder
- Pneumatic expansion reel holder shaft
- Motorized product outfeed conveyor
- Cross sealing with bar 250 mm – 9.84″ width
- Standard dynamic film conformer with position indicator with numerical display
- Variation of the sealing bar height position by means of a motor, storable by program (center seal)
- Variation of the longitudinal sealer height position by means of a motor, storable by program (center seal)
- Drawers to collect product waste, under the entire length of the infeed conveyor and part of the machine
- Printed film centering device, no product – no bag, and end of film reel sensor included
- Motors configuration controlled by inverters: reel holder with asynchronous motor
- Motors configuration controlled by drivers: infeed conveyor/cross sealer/ longitudinal sealer/outfeed conveyor with indipendent brushless
- Machine stop in phase
- FLXMOD® control system equipped with:
- This system is able to check all operations, simply and precisely, such as:
- Possibility of scheduling up to 50 different work cycles
- Emergency button
- Reduced power consumption
- Compliance with CE regulations
