SMI HS700 Continuous Automatic Side Sealer

In Stock

Category:

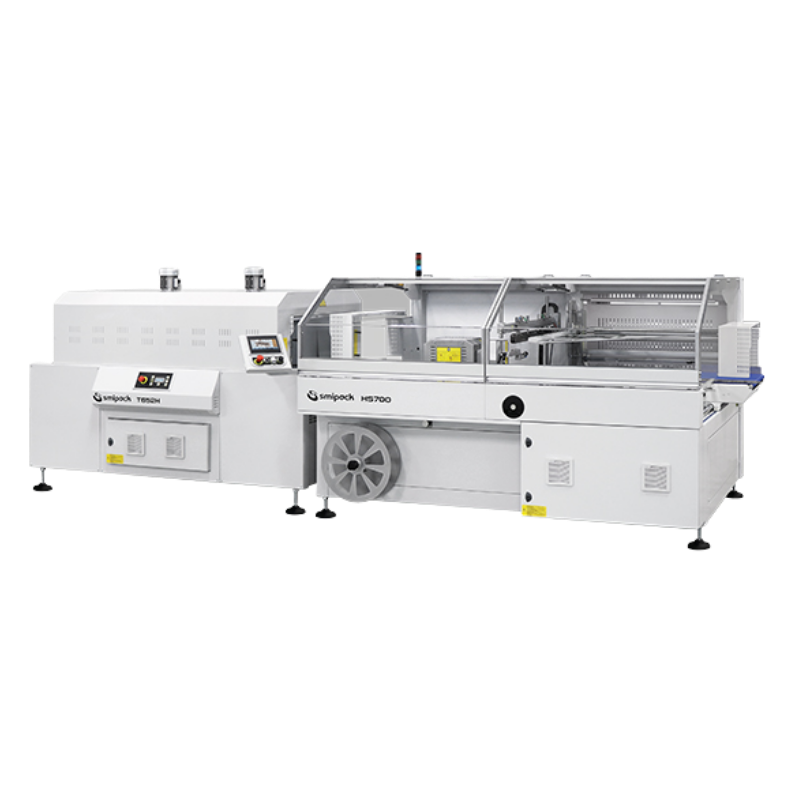

SMI HS700 Continuous Automatic Side Sealer
SMI HS700 Continuous Automatic Side Sealer - Image 2
SMI HS700 Continuous Automatic Side Sealer - Image 3
SMI HS700 Continuous Automatic Side Sealer - Image 4
SMI HS700 Continuous Automatic Side Sealer - Image 5
SMI HS700 Continuous Automatic Side Sealer - Image 6
SMI HS700 Continuous Automatic Side Sealer - Image 7

THIS FULLY ELECTRIC HIGH SPEED SIDE SEALER SEALS UP TO 70 PACKAGES PER MINUTE

The fully electric SMI HS700 Continuous Automatic Side Sealer meets outputs of up to 70 packages per minute. This machine is apart of the HS series that we provide and are designed according to the most advanced concepts of industry 4.0, all known for their great quality/price ratio and modularity. In fact, all the models of this range can be supplied with or without shrink tunnel. These machines also offer the ability to package products with unlimited length, increased production capacity, a significant reduction of film waste, and can handle Polyolefin and Polyethylene.

  •   70 Packs per Minute
  •   Large Opening and Sealing Area for Larger Products
  •   Max Product Height: 12″
  •   Sealing Bar: 28″
  •   Intermittent working cycle
  •   Reliable, Versatile, Reasonably Priced and Built to Last.

Brochure Button
Get Quoted Today! We typically respond within an hour.​
SMI HS700 Continuous Automatic Side Sealer
SMI HS700 Continuous Automatic Side Sealer - Image 2
SMI HS700 Continuous Automatic Side Sealer - Image 3
SMI HS700 Continuous Automatic Side Sealer - Image 4
SMI HS700 Continuous Automatic Side Sealer - Image 5
SMI HS700 Continuous Automatic Side Sealer - Image 6
SMI HS700 Continuous Automatic Side Sealer - Image 7
Get Quoted Today! We respond within an hour.​

ADVANTAGES OF THE SMI HIGH SPEED SIDE SEALERS



  • Continuous FULL ELECTRIC 4.0 packer with 2 belts
  • Intermittent working cycle
  • Cross sealing bar with PTFE-coated sealing blade controlled by Inverter and Encoder
  • Side sealing system by friction with hot blade
  • FLXMOD® control system equipped with:
    • Operator Interface with Panel PC and 7” full-colour touch screen display with PLC user-friendly
    • Power and control section consisting of:
      • Inverters for each motor
      • IN/OUT control modules with 16 digital inputs/outputs
      • analog inputs control modules
      • thermocouple-reading control modules
    • This system is able to check all operations, simply and precisely, such as:
      • electronic checking of the film tension
      • adjustment of cross bar height
      • dual sealing temperature adjustment, both for the longitudinal and the cross sealer
      • sealing time adjustment
      • possibility of packaging individual packs or groups of products
      • electronically controlled conveyor belt speed
      • process statistics
  • Optional motorized conveyor closing system controlled by inverter
  • Motorized center seal system
  • 20 storable programs
  • Infeed conveyor released from the square to facilitate the film insertion
  • Systems for the leading guide and the decrease of the film tension placed before the cross bar and the longitudinal
  • Lateral motion device of the longitudinal sealer
  • Emergency button
  • Reduced power consumption
  • Compliance with CE regulations



For more information about the machine and other shrink packaging options please Contact Us at (416) 299-0960 and one of our customer service representatives would be happy to help you with whatever you need.

Show More Show Less

Specs

Power supply 220-240 Volts/3 Phase 50/60 Hz
Sealing Area 28″ Wide
Max Product Height 12″
Machine Size W 109″, L 88″, H 63″-69″
Max. Packing Speed 70 Packs per/Min
Machine Weight 2095lbs
