Shanklin Omni Side Sealer Improves Efficiency And Lower Operating Costs!!

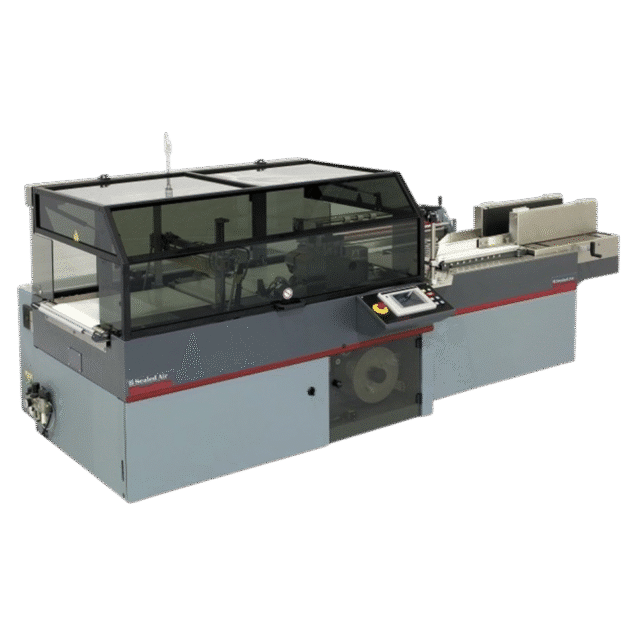

Shanklin Omni Side Sealer redefine traditional shrink packaging equipment with innovative new features like modular plug and play in-feeds, advanced control network, and dual product flow configurations. Designed for maximum packaging flexibility and ease of operation, the Shanklin Omni begins the next generation of shrink packaging equipment.
Features:
- Modular plug and play in-feeds
- Servo motion control technology
- Global platform – Metric fasteners – Designed for CE
- Large package size sealing capacity
- Package set-up storage capability
- New control network provides automatic system configuration and diagnostics
- Available right-to-left or left-to-right production flow configuration
- Operator- and maintenance-friendly design
Specifications:
| Package Size Minimum | 1/2″ Wide x 1/16″ High x 3″ Long |
| Package Size Maximum | 19″ Wide x 8″ High x Infinite Long |
| Max Film Width (Folded) | 30 inches |
| Max Film Width (Flat) | 60 inches (with optional centerfolder) |
| Conveyor Height | 35 1/2 – 42 inches |
| Package Speeds | Maximum 80 PPM |
| Film Speeds | 120 ft/min |
| Longitudinal Seal | Dual Wire or Hot Knife |
| Transverse Seal | Hot Wire or Hot Knife |
| Drives | Conveyor/Side Seal 1/2 HP AC |
| End-Seal Carriage 3/4 HP AC | |
| Power | 230 Volts/3 Phase/18 Amps |
Advantage:
- Fast And Programmable
- Versatile And Labour Saving
- Easy Access And Maintenance
- Operator Friendly
Shanklin Omni Automatic Side Sealer is fully equipped with following safety devices:
- Emergency stop button to instantly stop machine motion
- Seal bar safety features to open jaws if closed on an obstacle
- Low voltage sensors and controls
- Multiple safety interlocks
- Torque limits on drives
- Tamper-resistant controls and interlocks
- Full coverage interlocked hood over end-seal and side-seal areas
