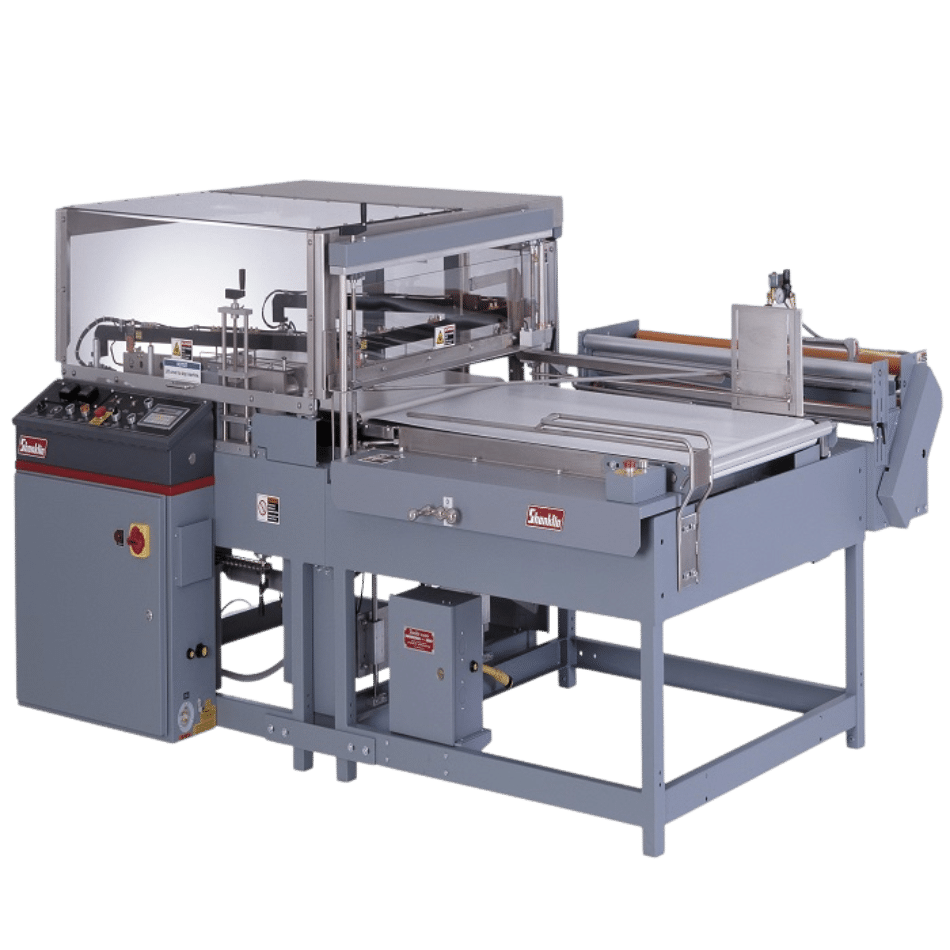

Shanklin A28A High Speed Automatic L-Bar Sealer

In Stock

Shanklin A28a is Consistent Quality, Performance, And Reliability In A Flexible L-Seal Design!

Shanklin Automatic L Sealer A28A features adjustable height seal jaws specially designed for products too large to fit through the A-26A or A-27A, and is equipped with a heavy- duty discharge conveyor to wrap much heavier product than most automatic L-Sealers can handle. The machine offers gentle product feed and straight line product flow that make them ideally suited for handling a wide variety of products. Shanklin A-28 feature conveyor-fed automatic operation and are capable of processing up to 25 packages per minute, plus the L-Seal design provides great flexibility and quick product change. Each will accept randomly spaced product, fed either automatically or by hand.

  •   Up to 25 Packs per Min. Sealing Speed
  •   Heavy Duty Automatic L Bar Sealer
  •   Heavy Duty Conveyor allows for supreme Versatility
  •   Designed for maximum packaging flexibility and ease of operation

Brochure Button

Shanklin Automatic L Sealer A28A Features Consistent Quality, Performance, And Reliability In A Flexible L-Seal Design!!



Shanklin Automatic L Sealer A28A  features adjustable height seal jaws specially designed for products too large to fit through the A-26A or A-27A, and is equipped with a heavy- duty discharge conveyor to wrap much heavier product than most automatic L-Sealers can handle. The machine offers gentle product feed and straight line product flow that make them ideally suited for handling a wide variety of products. Shanklin A-28 feature conveyor-fed automatic operation and are capable of processing up to 25 packages per minute, plus the L-Seal design provides great flexibility and quick product change. Each will accept randomly spaced product, fed either automatically or by hand.



Specifications:

SEALING SIZE 31″W x 43″L
MAX. PRODUCT HEIGHT 10″
MIN. PRODUCT LENGTH 7 1/2″ Standard
5″ with optional closing conveyor
MAX. PRODUCT LENGTH 41″
MAX. FILM WIDTH (FOLDED) 36″
MAX. FILM WIDTH (FLAT) 60″ with large compact centerfolder
CONVEYOR HEIGHT Adjustable 31 1/2″ – 37 1/2″
PACKAGING SPEEDS 25 packages per minute maximum
COMPRESSED AIR 0.5 C.F.M. free air at 60 ps
LONGITUDINAL AND TRANSVERSE SEAL Hot knife jaws



Advantages:

  • Reliable
  • Flexible
  • Versatile
  • Safe And Secure
  • Easy To Use And Maintain



It is equipped with following safety devices

  • Emergency stop button instantly stops all machine functions until manually reset
  • Multiple safety interlocks
  • A transparent hood interlocked electrically with the automatic sequencing circuit, covers
  • Tamper-resistant control the sealing area; gas cylinders support the hood when it is lifted to allow access
  • Low voltage sensors and actuators
  • Film clamp proximity sensors ensure safe sealing arm jaw closure



For more information about the machine and other shrink packaging options please Contact Us at (416) 299-0960 and one of our customer service representatives would be happy to help you with whatever you need.

Specs

Sealing Size 31″W x 43″L
Max. Product Height 10″
Min. Product Length 7 1/2″ Standard
5″ with optional closing conveyor
Max. Product Length 41″
Max. Film Width (Folded) 36″
Max. Film Width (Flat) 60″ with large compact centerfolder
Conveyor Height Adjustable 31 1/2″ – 37 1/2″
Packaging Speeds 25 packages per minute maximum
Compressed Air 0.5 C.F.M. free air at 60 ps
Longitudinal and Transverse Seal Hot knife jaws
