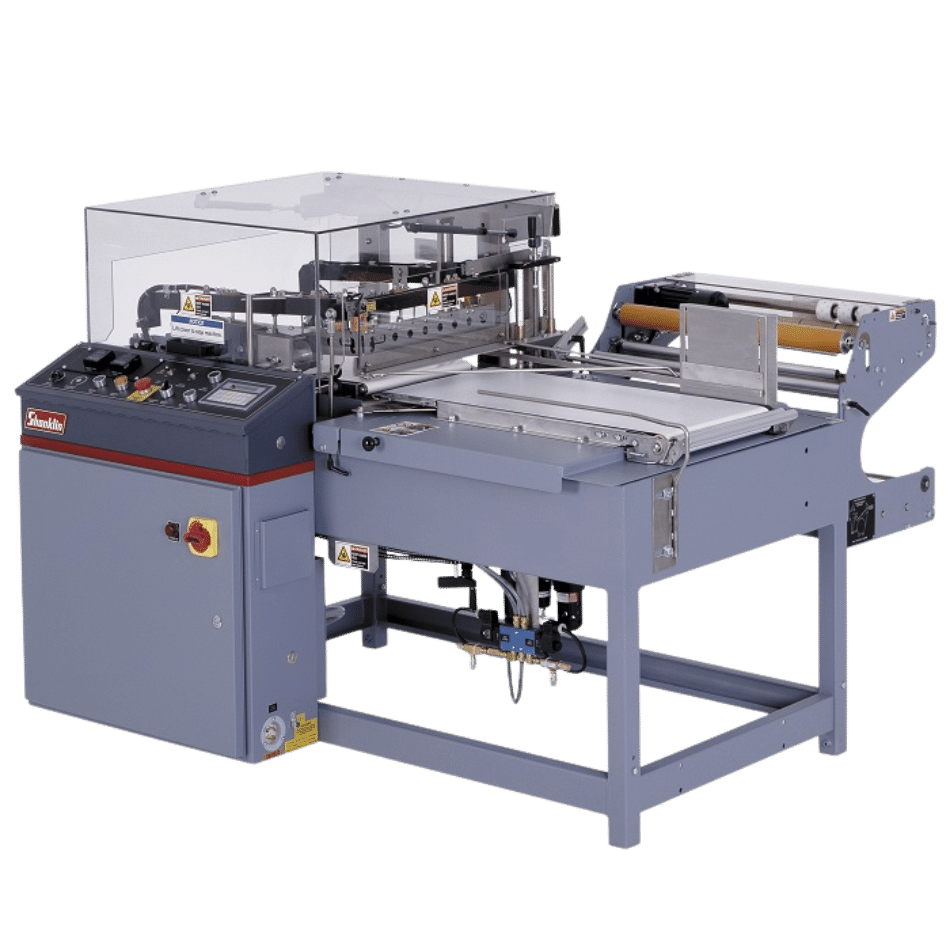

Shanklin A26A High Speed Automatic L-Bar Sealer

In Stock

Shanklin Automatic L Sealer A26A Features Consistent Quality, Performance, And Reliability In A Flexible L-Seal Design!!



Shanklin Automatic L Sealer A26A features adjustable height seal jaws and can automatically wrap a wide range of products, including the high profile or short length items, at speeds up to 35 packages per minute. The machine offers gentle product feed and straight line product flow that make them ideally suited for handling a wide variety of products. Shanklin A-26 feature conveyor-fed automatic operation and are capable of processing up to 35 packages per minute, plus the L-Seal design provides great flexibility and quick product change. Each will accept randomly spaced product, fed either automatically or by hand. It is also available in a USDA approved model.

  •   Up to 35 Packages Per Min.
  •   Fully Automatic Shanklin L Bar Sealer
  •   The L-Seal design provides great flexibility and quick product change.
  •   Reliable, Versatile, and Built to Last.

Brochure Button



Shanklin Automatic L Sealer A26A Features Consistent Quality, Performance, And Reliability In A Flexible L-Seal Design!!



Shanklin Automatic L Sealer A26A  features adjustable height seal jaws and can automatically wrap a wide range of products, including the high profile or short length items, at speeds up to 35 packages per minute. The machine offers gentle product feed and straight line product flow that make them ideally suited for handling a wide variety of products. Shanklin A-26 feature conveyor-fed automatic operation and are capable of processing up to 35 packages per minute, plus the L-Seal design provides great flexibility and quick product change. Each will accept randomly spaced product, fed either automatically or by hand. It is also available in a USDA approved model.



Specifications:

SEALING SIZE 15″W x 21″L
MAX. PRODUCT HEIGHT 5 1/2″
MIN. PRODUCT LENGTH 4″ Standard
1 1/2″ with optional closing conveyor
MAX. PRODUCT LENGTH 20″
MAX. FILM WIDTH (FOLDED) 24″
MAX. FILM WIDTH (FLAT) 44″ with compact centerfolder
CONVEYOR HEIGHT Adjustable 31 1/2″ – 37 1/2″
PACKAGING SPEEDS Up to 35 packages per minute (standard)
POWER 230V, 15 Amps, 60 HZ, 1 phase
COMPRESSED AIR 0.5 C.F.M. free air at 60 ps
LONGITUDINAL AND TRANSVERSE SEAL Hot knife jaws or SmartWire



Advantages:

  • Reliable
  • Flexible
  • Versatile
  • Safe And Secure
  • Easy To Use And Maintain



Shanklin Automatic L Sealer A26A  is fully equipped with following safety devices:

  • Emergency stop button instantly stops all machine functions until manually reset
  • Multiple safety interlocks
  • A transparent hood interlocked electrically with the automatic sequencing circuit, covers
  • Tamper-resistant control the sealing area; gas cylinders support the hood when it is lifted to allow access
  • Low voltage sensors and actuators
  • Film clamp proximity sensors ensure safe sealing arm jaw closure



For more information about the machine and other shrink packaging options please Contact Us at (416) 299-0960 and one of our customer service representatives would be happy to help you with whatever you need.

Specs

Sealing Size 15″W x 21″L
Max. Product Height 5 1/2″
Min. Product Length 4″ Standard
1 1/2″ with optional closing conveyor
Max. Product Length 20″
Max. Film Width (Folded) 24″
Max. Film Width (Flat) 44″ with compact centerfolder
Conveyor Height Adjustable 31 1/2″ – 37 1/2″
Packaging Speeds Up to 35 packages per minute (standard)
Power 230V, 15 Amps, 60 HZ, 1 phase
Compressed Air 0.5 C.F.M. free air at 60 ps
Longitudinal and Transverse Seal Hot knife jaws or SmartWire
