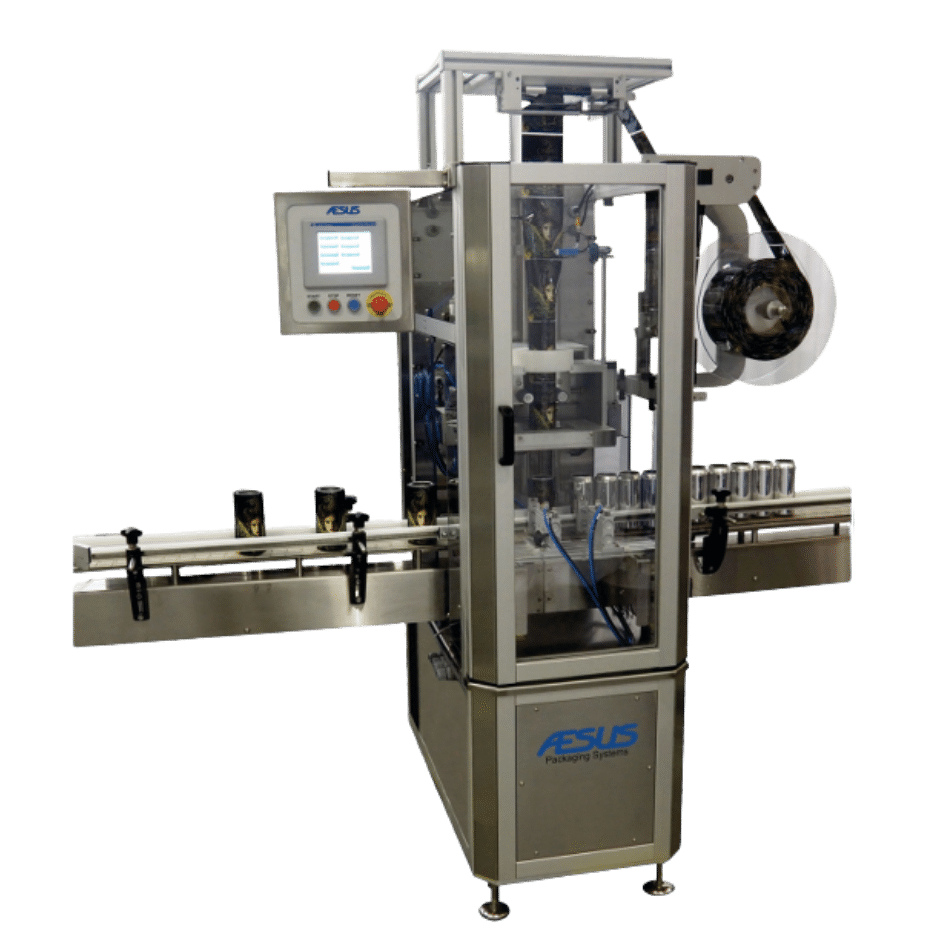

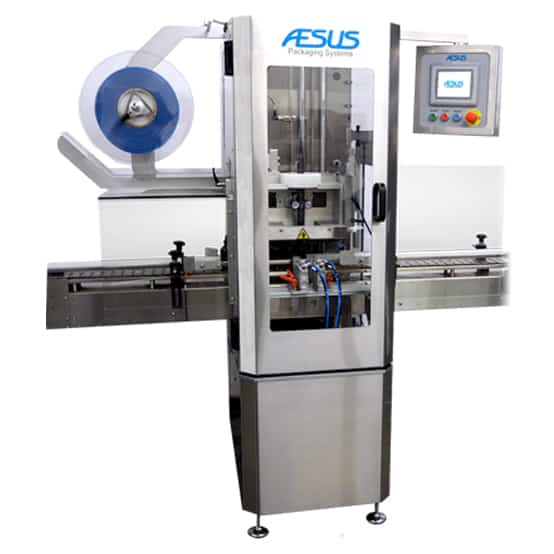

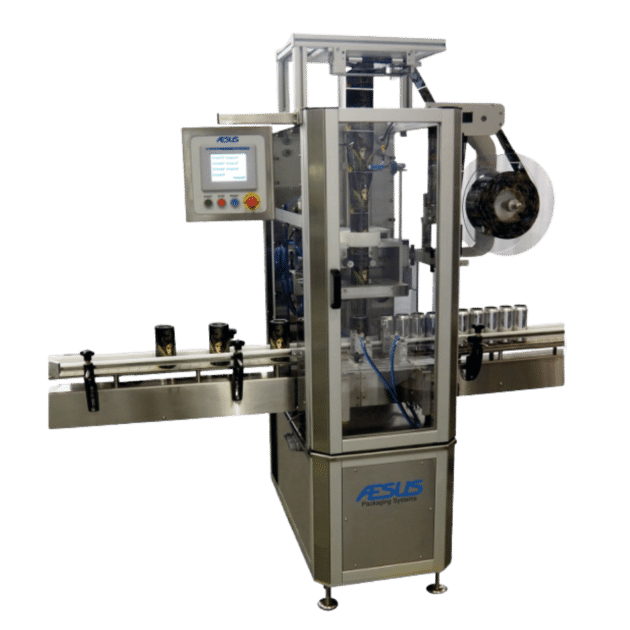

Economy-Shrink Servo Powered Sleeving and Neck Banding

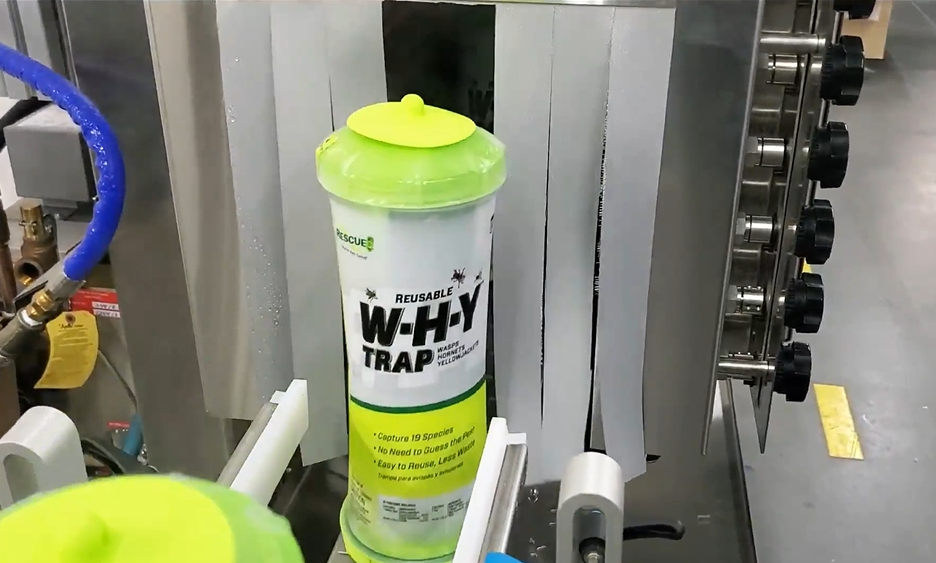

Sleeve application is done directly with servo motors and without suction cups. Once the container is present and beneath the mandrel the sleeve material is driven down around the container and is only cut once the majority of the sleeve is on the container. Coloured print registered (photo registration) and clear materials can be run on the same machine.
Inherently well designed machinery including oversized supports, stainless steel panels, safety guarding, and compact footprint. This shrink labeller takes up half the space of others in its class.
Specifications:
- Speeds on Neck band: 50 bpm*
- Speeds on Full body: 30 bpm*
*bottles per minutes
Features:
- Pneumatic finger gating
Optional Accessories:
- Photo registration
- Dual rotating sleeve applicator
- Band tacker
- Anti-static bar
- Sleeve support for tamper evident neck banding
- Broken and “end of film” sensor
Available Upgrade Options:

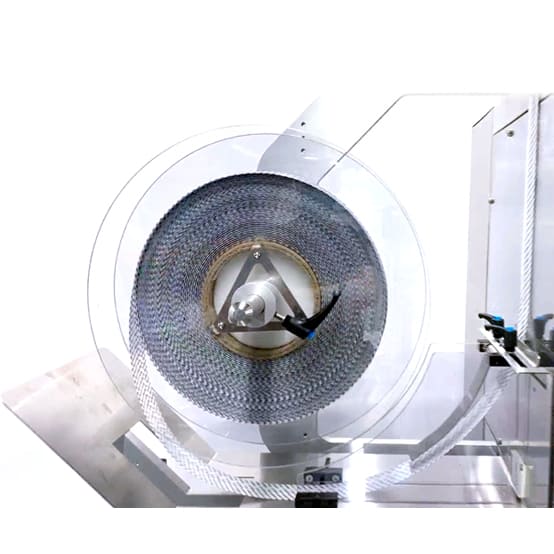

Motorized Band Unwinder
Automatic Motorized Band Unwinder, operates using a low-level sensor which detects when the band unwind should feed band to alleviate web tension. This allows the machine to run at higher speeds.
Specifications:
- Speeds on Neck band: 100 bpm*
- Speeds on Full body: 80 bpm*
*bottles per minute

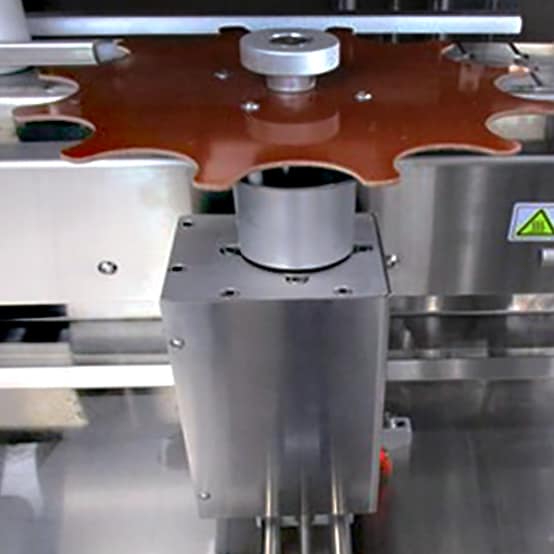

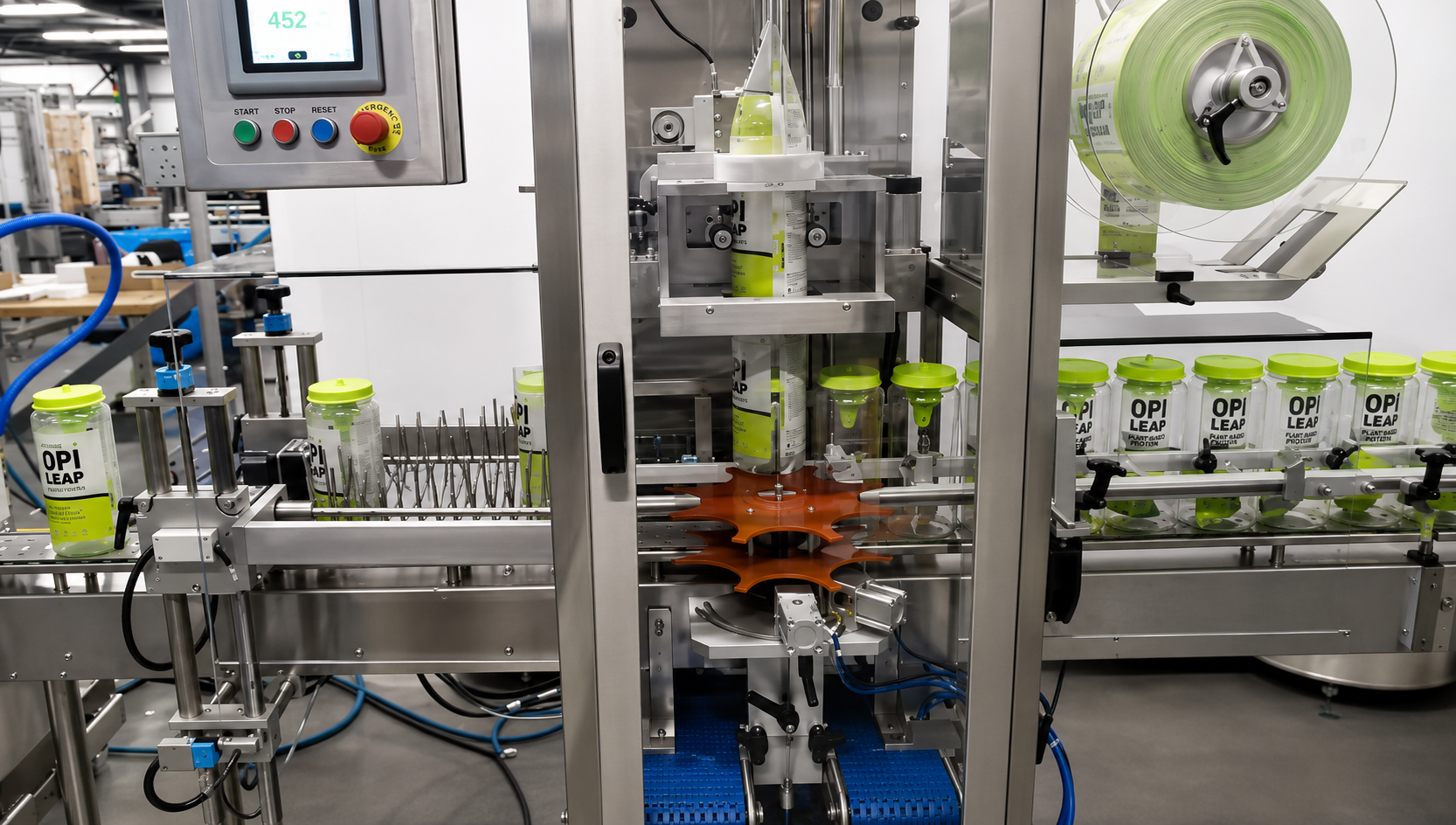

Starwheel Gating with Motorized Band Unwinder
The use of a motorized star wheel indexing system is required when a high speed is required. This system allows for better product stability during indexing and sleeve application. With the dedicated star wheel, we are able to handle a variety of different content sizes and shapes at high speeds.
Specifications:
- Speeds on Neck band: 120 bpm*
- Speeds on Full body: 90 bpm*
*bottles per minute
For more information about this machine, the additional upgrade options and other shrink labelling options please Contact Us at (416) 299-0960 and one of our customer service representatives would be happy to help you with whatever you need.
