B90 Automatic Sleeve Wrapper

In Stock

HIGH QUALITY, FLEXIBLE PACKAGING FOR BUNDLES AND MULTIPACKS

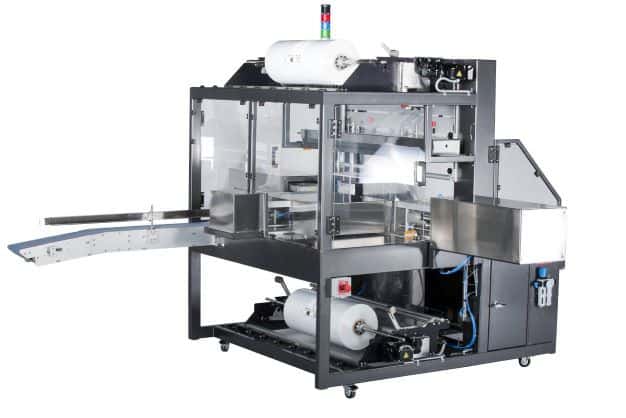

The Damark B-90 is an Automatic Sleeve Wrapper that delivers cost-effective, wrapped bundles and multipacks of collated or uncollated products in cartons, bags, cans, bottles, plastic containers or trays, and has an automatic product infeed conveyor that feeds either from the right or left of the machine.

This machine is available in three standard configurations or custom-made to fit your needs. Popular applications include multi-6, 12, 24 and 30 packs of beverages, pharmaceutical and nutraceutical products, bundles of bagged or cartoned products and food.

When paired with a shrink tunnel, the system produces tight, uniform sleeves ideal for multipacks, promotional bundles, and protective transport packaging.



Brochure Button

Key Features and Benefits:

Damark Automatic Shrink Wrap Systems are thoughtfully designed and intuitive to use and come equipped with pneumatic Teflon-coated sealing heads, twin safety push-button controls, digital PID temperature controls and precise seal adjustment. Seals are attractive, strong and secure for high-value, cost-effective packaging.

  • Single Row Collating / 90 degree product turn: One line of product is pushed through the film at a 90 degree angle.
  • Multi-Row Collating with Product Pusher: One line of product is collated one a row at a time and then is pushed through the film at a 90 degree angle.
  • Multi-Lane Infeed Collating: One line of product is feed onto the infeed conveyor and then separated into multiple rows before it is pushed through the film at a 90 degree angle



Key Benefits and Features:

  • ย Industrial PC with 10โ€ color touchscreen HMI
  • Teflon coated sealing head
  • Adjustable speed conveyors
  • Easy thread, quick change film system
  • Large capacity film rolls
  • Lexan guarding
  • All parts UL/CSA approved
  • Locking casters
  • Numerous custom options



For more information about this machine and other sleeve/bundle wrapping options, pleaseย contact usย atย (416) 299-0960, and one of our customer service representatives will be happy to assistย you with whatever you need.

Specs

Sealing Width 24โ€ณ L x 34โ€ณ W x 44″ H
Max Product Width 20โ€ณ L x 30โ€ณ W x 40″ H
Max Product Height 17″
Construction Painted Steel
Machine Stand Choice of: Stainless Steel Locking Casters or Footpad
Infeed Right-to-Left or Left-to-Right, Collation
Power Choice of 220 V – 600 V, 3 Phase
Speedย  Application Dependent
Controls
  • Industrial PC and 10โ€ Colour Touchscreen
  • Single-point setting for speed, temperature, and pressure.
  • Recipe management
  • Production reporting
  • Multi-language
  • Process diagnostics and monitoring
  • Maintenance alerts
Film Changeover Large Capacity Film Rolls & Easy Thread Quick Change Film System
