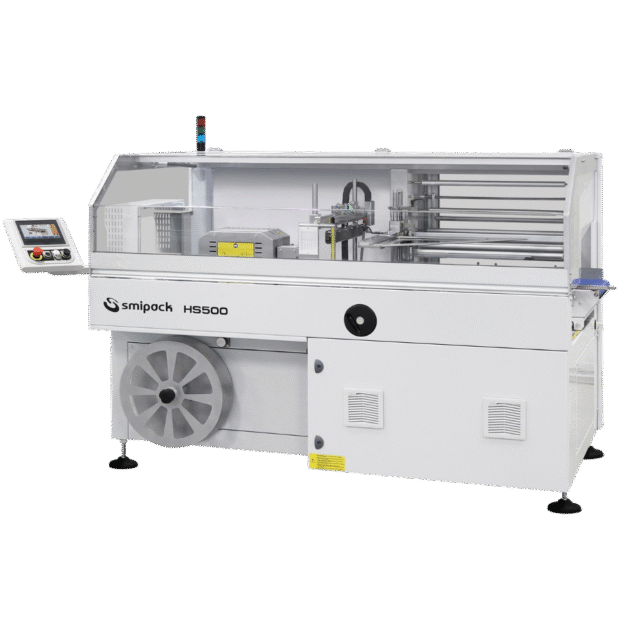

SMI HS500 High Speed Side Sealer

In Stock


This high speed side sealer seals up to 150 products per minute!

The SMI HS500 High Speed Side Sealer is capable of packaging 100-150 packages per minute. It is a reasonably priced, continuous sealing workhorse machine that is fully electric. This means there are no compressed air requirements. Compared to other L sealers, the HP series offer several advantages such as: packaging products with unlimited length, increased production capacity, a significant reduction of film waste. The continous sealing can handle Polyolefin and Polyethylene.

The HS series with continuous sealing and intermittent or box motion cycle can handle Polyolefin and Polyethylene, Polypropylene centerfolded or flat film with film folder PX, and is suited to meet outputs of up to 7200 packs/hour and 9000 packs/hour with customized solutions.

See how the HS500 and HS500 Servo compare here: HS500 VS HS500 SERVO

  •   100-150 Packs per Minute
  •   Fully Automatic SMI High Speed Side Sealer
  •   Max Product Height: 8″
  •   Max Centerfold Film: 24″
  •   Continuous motion with intermittent or box motion cycle
  •   Reliable, Versatile, Reasonably Priced and Built to Last.

Brochure Button



  • Reliable: They are equipped with programmable controllers for easy wiring and troubleshooting
  • Flexible: Their photoelectric sensor system automatically compensates for package length change. Their automatic film advance system allows light and flexible products to be fed through the machine with ease
  • Versatile: They offer easy product and size changeover. They have ability to handle virtually any type of film (depending on sealing system). Their features are fully adjustable for maximum convenience
  • Safe: Their electrical controls are UL-listed (for meeting the highest safety standards). Sealing area is protected by an electrically interlocked transparent hood through which the sealing process may be safely observed. Their hood may be easily lifted for full access when necessary
  • Secure: They have password protection capability which safeguards sensitive machine functions
  • Emergency stop button instantly stops all machine functions until manually reset
  • A transparent hood, interlocked electrically with the automatic sequencing circuit, covers the sealing area; gas cylinders support the hood when it is lifted to allow access
  • They are fully electric and no compressed air is needed.
  • Their PTFE coated blade allows the use of polyethylene film & polyolefin
  • Possibilty of wrapping single as well as multipacks
  • Motorized center seal system.
  • Continous sealing cycle


For more information about the machine and other shrink packaging options please Contact Us at (416) 299-0960 and one of our customer service representatives would be happy to help you with whatever you need.


Power supply 220-240 Volts/3 Phase
Sealing Area 20″ Wide
Max Product Height 8″
Sealing Type Hot Knife
Max. Packing Speed 150/Min
Max. Centerfold film 24″
