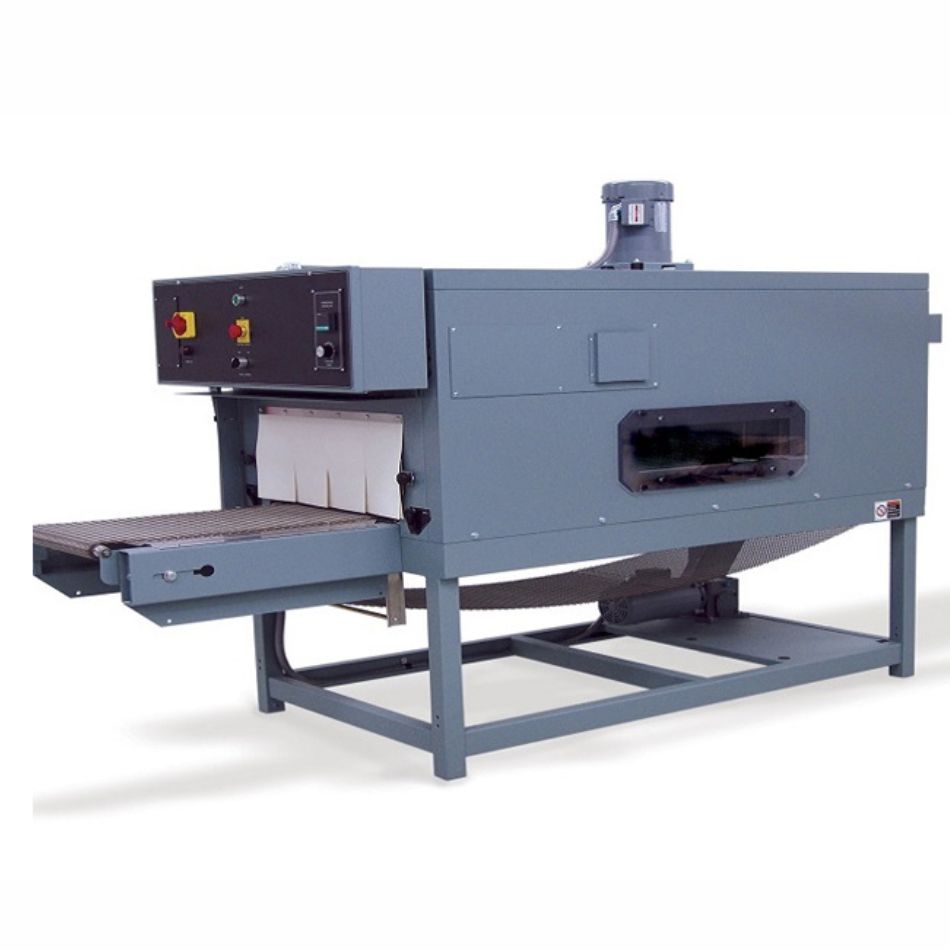

Shanklin T-71 Shrink Tunnel

In Stock

Category:

The Shanklin T-71 Shrink Tunnel Is A High Speed Performer Engineered For Your Most Demanding Applications!!
Shanklin T-71 Shrink Tunnel has been designed to perform Shrinking high volume, heat absorptive surfaces and/or irregular shaped packages with ease. A longer single chamber increases shrink capacity at higher speeds, and the fully controllable air temperature and velocity allow you to customize shrinking conditions to the application.

  •   60″ Single Chamber Tunnel
  •   Fast – Conveyor speeds from 25 to 150 feet per minut
  •   Powerful hot air system keeps pace with the most demanding use
  •   Great for High Volume and Heat Shrinking Irregular Shaped products

Brochure Button

Features:

  • Features a longer (60″) single chamber tunnel to facilitate increased shrinking capacity at higher speeds.
  • Powerful hot air system keeps pace with the most demanding use.
  • Fast – Conveyor speeds from 25 to 150 feet per minute.



Specifications:

TUNNEL PASSAGE 10″ high x 22″ wide x 60″ long
TUNNEL SIZE 36″ wide x 68 1/2″ high x 92″ long
CONVEYOR HEIGHT 29″ minimum 42″ maximum
CONVEYOR LENGTHS 92″ long standard
POWER 230 Volts/3 Phase/53 Amps
CONVEYOR SPEEDS Variable from 25 to 150 ft./min.
BLOWER MOTOR 1 1/2 hp/3 Phase



Shanklin T71 Shrink Tunnel is fully equipped with the following:

Controls

  • Main power circuit breaker
  • Tunnel on/off switch
  • Conveyor start/stop switch
  • Conveyor variable speed control
  • Main and top air velocity controls



Safety features

  • Motor overload protection
  • High temperature limit switch
  • Main power circuit breaker
  • Emergency stop switches



Accessories

  • Side air cascades with adjustable damper
  • Side viewing windows
  • Casters
  • Live or dead roller conveyor
  • Composite link conveyor belt
  • Volume control for down air
  • “Poly kit” for use with LDPE



For more information about the machine and other shrink packaging options please Contact Us at (416) 299-0960 and one of our customer service representatives would be happy to help you with whatever you need.

Specs

Tunnel Passage 10″ high x 22″ wide x 60″ long
Tunnel Size 36″ wide x 68 1/2″ high x 92″ long
Conveyor Height 29″ minimum 42″ maximum
Conveyor Lengths 92″ long standard
Power 230 Volts/3 Phase/53 Amps
Conveyor Speeds Variable from 25 to 150 ft./min.
Blower Motor 1 1/2 hp/3 Phase
