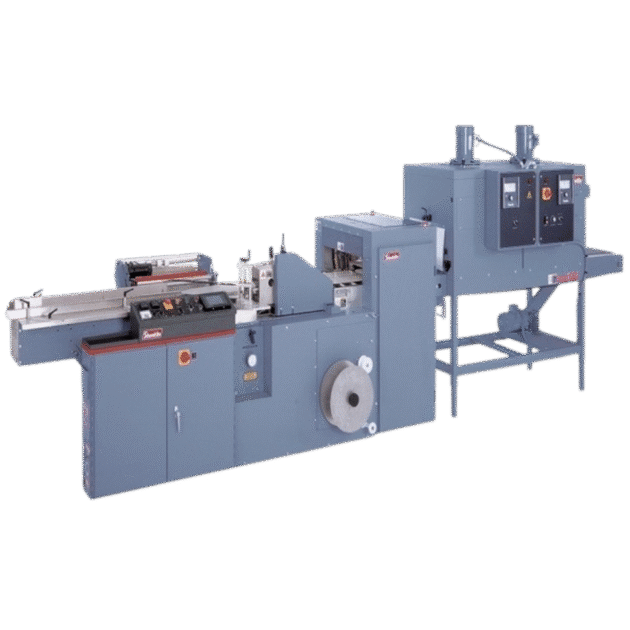

Shanklin HS1 High Speed Side Sealer

In Stock

Category:

BUILT TO MEET TODAY’S HIGH SPEED SHRINK PACKAGING CHALLENGES

Shanklin HS1 Side Sealer produce trim seals on three sides of a package with clear film on the remaining side, top, and bottom…making it the perfect solution for products with top and bottom graphics. The HS-1 features a simplified design for easy operation, maintenance, and changeover, and offer EZ film load capability. It gives you the speed and flexibility you need to meet ever-increasing and ever-changing production demands. It also features fully automatic product handling, speeds from 100 to 180 packages per minute (depending on the model, product, and application), and the ability to accommodate a wide range of product lengths and shapes.

  •   Automaic Product Handling from 100 to 180 Packages Per Min.
  •   Fully Automatic Shanklin High Speed Side Sealer
  •  The ability to accommodate a wide range of product lengths and shapes.
  •   Simplified design for easy operation, maintenance, and changeover, and offer EZ film load capability
  •   Reliable, Versatile, and Built to Last.

Shanklin HS1 Side Sealer Provides Speed And Flexibility To Meet Today’s Challenging Production Requirements!!

Shanklin HS1 Side Sealer produce trim seals on three sides of a package with clear film on the remaining side, top, and bottom…making it the perfect solution for products with top and bottom graphics. The HS-1 features a simplified design for easy operation, maintenance, and changeover, and offer EZ film load capability. It gives you the speed and flexibility you need to meet ever-increasing and ever-changing production demands. It also features fully automatic product handling, speeds from 100 to 180 packages per minute (depending on the model, product, and application), and the ability to accommodate a wide range of product lengths and shapes.

Package Size Min. 1/2″W x 1/8″H x 3″L
Max. 16″W x 6″H x 60″L
Optional 8″ height
Width + height combination
Cannot exceed max. film width
Max. Film Width 22″ folded or 44″ flat; centerfolder required for flat film
Conveyor Height 35 1/2″ without casters; 41 1/2″ with casters
Package Speeds 100 packages/min. maximum; dependent on product and application
Transverse Seal SmartWire or hot knife jaws standard. Polyethylene jaws available
Drive 1 hp DC motor with SCR variable speed control
Power 230 Volts/1 Phase/15 Amps



Features:

  • Excellent value – The fastest, most dependable high-speed wrappers for the price!
  • Smooth operation – Features fully automatic continuous flow operation
  • Easy to use – Simple to set up and maintain; designed for quick, easy size changeovers; features user-friendly color touch screen controls
  • Built to last – Rugged 3/4-inch-thick aluminum frame
  • Versatile – Runs equally well at both high and low speeds; capable of handling a wide range of packages; can be used with virtually any type of film (depending on sealing system)
  • Innovative – Features new SmartWire system that extends wire life and increases operational efficiency
  • Customizable – Wide variety of options and accessories allow you to customize your Hy-Speed wrapper precisely to your application

Additional features of USDA models:

  • Stainless steel construction
  • Removable wash down in-feed
  • Extra Gasketing for moisture
  • Light in electric box for moisture dissipation

Shanklin HS-1 High-Speed Side Sealer is fully equipped with following safety devices;

  • Emergency stop button instantly stops all machine functions until manually reset
  • Multiple safety interlocks
  • Air cylinder safety opens end seal jaws
  • Torque limiters on main drive and infeed conveyor
  • Low voltage sensors and actuators
  • Tamper-resistant controls

For more information about the machine and other shrink packaging options please Contact Us at (416) 299-0960 and one of our customer service representatives would be happy to help you with whatever you need.
